Product Summary

The AD8016ARB is a high output current dual amplifier designed for the line drive interface in Digital Subscriber Line systems such as ADSL, HDSL2, and proprietary xDSL systems. The drivers are capable, in full-bias operation, of providing 24.4 dBm output power into low resistance loads, enough to power a 20.4 dBm line, including hybrid insertion loss.

Parametrics

AD8016ARB absolute maximum ratings: (1)Supply Voltage: 26.4 V; (2)Internal Power Dissipation: 2.2 W; (3)Input Voltage (Common-Mode): ±VS; (4)Differential Input Voltage: ±VS; (5)Output Short Circuit Duration: Observe Power Derating Curves; (6)Storage Temperature Range: –65 to +125℃; (7)Operating Temperature Range: –40 to +85℃; (8)Lead Temperature Range (Soldering 10 sec): 300℃.

Features

AD8016ARB features: (1)xDSL Line Driver that Features Full ADSL CO (Central Office) Performance on ±12 V Supplies; (2)Low Power Operation: ±5 V to ±12 V Voltage Supply; 12.5 mA/Amp (Typ) Total Supply Current; Power-Reduced Keep-Alive Current of 4.5 mA/Amp; (3)High Output Voltage and Current Drive: IOUT = 600 mA; 40 V p-p Differential Output Voltage RL = 50 Ω, VS = ±12 V; (4)Low Single Tone Distortion: –75 dBc @ 1 MHz SFDR, RL = 100 , VO = 2 V p-p; (5)MTPR = –75 dBc, 26 kHz to 1.1 MHz, ZLINE = 100Ω, PLINE = 20.4 dBm; (6)High Speed: 78 MHz Bandwidth (–3 dB), G = +5; 40 MHz Gain Flatness; 1000 V/μs Slew Rates.

Diagrams

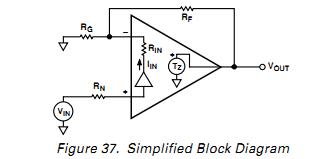

AD8016ARB simplified block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

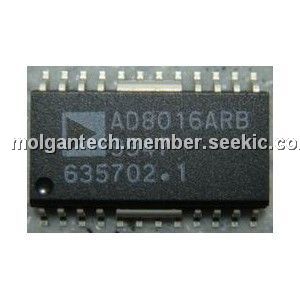

AD8016ARB
AD8016ARB
Analog Devices Inc
IC AMP XDSL LINE DVR 24-SOIC
Data Sheet
1-31: $4.65
AD8016ARB-EVAL
AD8016ARB-EVAL

BOARD EVAL FOR AD8016ARB
Data Sheet
Negotiable
AD8016ARBZ
AD8016ARBZ

IC AMP XDSL LINE DVR 24-SOIC
Data Sheet
0-1: $6.17
1-10: $5.55
10-100: $4.57
100-250: $4.20
250-500: $3.83
500-1000: $3.33
1000-2500: $3.29
AD8016ARBZ-REEL
AD8016ARBZ-REEL

IC AMP XDSL LINE DVR 24-SOIC TR
Data Sheet
0-1000: $3.33
AD8016ARB-REEL
AD8016ARB-REEL
Analog Devices Inc
IC AMP XDSL LINE DVR 24-SOIC
Data Sheet
Negotiable
