Product Summary

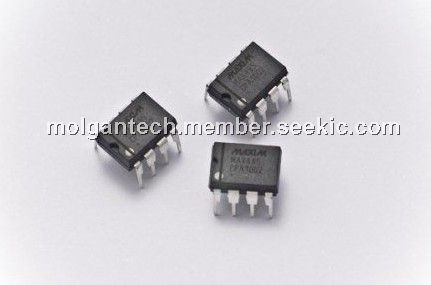

The MAX485CPA is designed as one kind of ±15kV ESD-protected, slew-rate-limited, low-power, RS-485/RS-422 transceiver device that can be used in Low-Power RS-485 Transceivers, Low-Power RS-422 Transceivers, Level Translators, Transceivers for EMI-Sensitive Applications, Industrial-Control Local Area Networks applications.
Parametrics
MAX485CPA absolute maximum ratings: (1)Supply Voltage (VCC): 12 V;(2)Control Input Voltage: -0.5V to (VCC+0.5V);(3)Driver Input Voltage: -0.5V to (VCC+0.5V);(4)Driver Output Voltage: -8V to +12.5V;(5)Receiver Input Voltage: -8V to +12.5V;(6)Receiver Output Voltage: -0.5V to (VCC+0.5V);(7)Continuous Power Dissipation: 727 mW;(8)Storage Temperature Range: -65℃ to +160℃;(9)Lead Temperature (soldering, 10sec): +300℃;(10)Operating Temperature Range: 0℃ to +70℃.
Features
MAX485CPA features: (1)current limiting and thermal shutdown for driver overload protection; (2)full-duplex and half-duplex versions available; (3)30ns propagation delays, 5ns skew; (4)-7V to +12V common-mode input voltage range; (5)three-state outputs; (6)ESD protection: ±15kV—human body model; (7)slew-rate limited for error-free data.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX485CPA |
Maxim Integrated Products |
RS-422/RS-485 Interface IC |
Data Sheet |
Negotiable |
|
||||||||||||
|
MAX485CPA+ |
Maxim Integrated Products |
RS-422/RS-485 Interface IC RS-485/RS-422 Transceiver |
Data Sheet |
|
|
||||||||||||
