Product Summary

The SAP15N is a darlington transistor with built-in temperature compensation diodes for audio amplifier applications. Darlington transistors, temperature compensation diodes and one emitter resistor are incorporated in one package, so labor for parts insertion as well as the parts count is reduced.

Parametrics

SAP15N absolute maximum ratings: (1)VCBO: 150V; (2)VCEO: 150V; (3)VEBO: 5V; (4)IC: 10A; (5)IB: 1A; (6)PC(Tc=25℃): 80W; (7)Tj: 150℃; (8)Tstg: –55 to +150℃.

Features

SAP15N features: (1)Built-in temperature compensation diodes and one emitter resistor; (2)Real time temperature compensation; (3)Elimination of the temperature dependency of the idling current; (4)Symmetrical design for the PNP and the NPN pinouts.

Diagrams

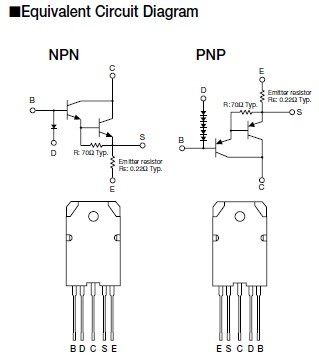

SAP15N Equivalent Circuit Diagram
