SN74LVC2G125DCUR

VSSOP-8, dual bus buffer gate, 3 state output, 3.3 V, 4.3 ns

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.15~0.30 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.15~0.30

PartNumber:: SN74LVC2G125DCUR

Brand:: Motorola, Inc - Motorola | Pack: DIP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Olin,Ms Stiny's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-11-10

From Other Seller

Part Number:SN74LVC2G125DCUR
US $0.15 - 0.30
2DI240A-055

US $70.00 - 100.00 / Piece
(0) Remove
AT45DB161B-TU

US $1.00 - 2.00 / Piece
(0) Remove
Quantity:

piece

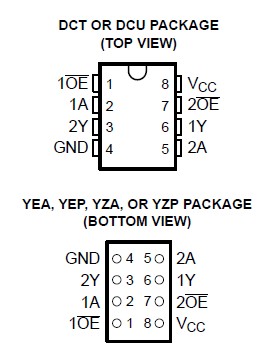

Product Summary

The SN74LVC2G125DCUR is a dual bus buffer gate, designed for 1.65-V to 5.5-V VCC operation. This SN74LVC2G125DCUR features dual line drivers with 3-state outputs. The outputs are disabled when the associated output-enable (OE) input is high. NanoStar and NanoFree. package technology of the SN74LVC2G125DCUR is a major breakthrough in IC packaging concepts, using the die as the package.

Parametrics

SN74LVC2G125DCUR absolute maximum ratings: (1)VCC Supply voltage range: –0.5 6.5 V; (2)VI Input voltage range: –0.5 6.5 V; (3)VO Voltage range applied to any output in the high-impedance or power-off state: –0.5 6.5 V; (4)VO Voltage range applied to any output in the high or low state: –0.5 VCC + 0.5 V; (5)IIK Input clamp current VI < 0: –50 mA; (6)IOK Output clamp current VO < 0: –50 mA; (7)IO Continuous output current: ±50 mA; (8)Continuous current through VCC or GND: ±100 mA.

Features

SN74LVC2G125DCUR features: (1)Available in the Texas Instruments NanoStar. and NanoFree. Packages; (2)Supports 5-V VCC Operation; (3)Inputs Accept Voltages to 5.5 V; (4)Max tpd of 4.3 ns at 3.3 V; (5)Low Power Consumption, 10-mA Max ICC; (6)±24-mA Output Drive at 3.3 V; (7)Typical VOLP (Output Ground Bounce) <0.8 V at VCC = 3.3 V, TA = 25℃; (8)Typical VOHV (Output VOH Undershoot) >2 V at VCC = 3.3 V, TA = 25℃; (9)Ioff Supports Partial-Power-Down Mode Operation.
