Product Summary

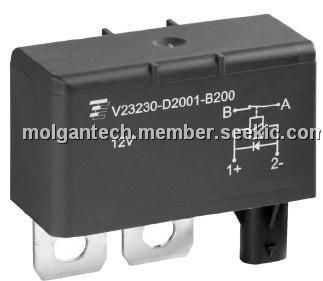

The V23230D2001B200 is an automotive relay.
Parametrics
V23230D2001B200 specification: (1)Contact arrangement: 1 form B, 1 NC; (2)Rated voltage: 12VDC; (3)Max. switching voltage: depends on load parameter set; (4)Rated current, cable 50mm2: 175A at 85℃; (5)Limiting making current: 200A at <5VDC; (6)Limiting breaking current: 200A at <5VDC; (7)Limiting short-time current: depends on load parameter set; (8)Contact material: AgSnO2; (9)Contact style: single contact; (10)Min. recommended contact load: 1A at 5V; (11)Initial voltage drop: 100mV at 100A; (12)Operate/release time typ. at nominal voltage Bounce time max.: 25/6ms; (13)Mechanical endurance >10000000 ops.
Features
V23230D2001B200 features: (1)Normally closed contact; (2)Limiting continuous current 175A at 85℃.

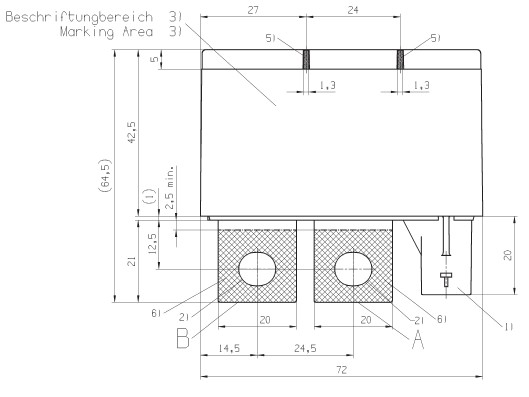

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 V23230D2001B200 |
TE Connectivity |
General Purpose / Industrial Relays 12VDC 1FORM B IP46 HCR200 SCRW TERM |
Data Sheet |
|
|
||||||||||||
