Product Summary
The XLR10 is a high voltage recovery for x-ray and industrial applications.
Parametrics
XLR10 electrical characteristics: (1)Peak Reverse Voltage, Operating, VR(OPER): 9kV; (2)Peak Reverse Voltage, Test, V R(TEST): 10kV; (3)Average Rectified Forward Current in 55 ℃ Oil: 200mA; (4)Max. Peak Surge Current, IFRM 1/2 Cycles @ 60Hz (Non Repetitive): 18AMPS; (5)Max. Peak Surge Current, IFRM, 10 Cycles @ 60Hz: 5.5AMPS; (6)Max. DC Reverse Current, I RM, @ VR(TEST) and 25 ℃: 1μA; (7)Max. DC Reverse Current, IRM, @ VR(TEST) and100 ℃: 30μA; (8)Max. Reverse Recovery Time,TRR lF=50mA, lR =1 00mA, l RR =25mA: 175ns.
Features
XLR10 features: (1)epoxy molded package; (2)platinum doped; (3)avalanche capability.

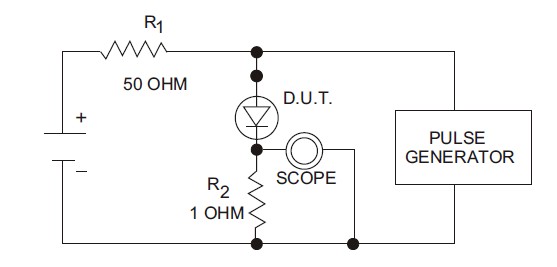

Diagrams
