Product Summary
The Z8023010VSC is an enhanced serial communication controller.
Parametrics
Z8023010VSC absolute maximum ratings: (1)VCC supply voltage range: -0.3V to +7V; (2)Voltage on all pins with respect to GND: -0.3V to VCC+0.3V; (3)Operating Ambient Temperature: See Ordering Information; (4)Storage Temperature: -65℃ to +150℃
Features
Z8023010VSC features: (1)Input High Voltage: 2.2V to VCC+0.3V; (2)Input Low voltage: -0.3V to 0.8V; (3)VOH1 Output High Voltage: 2.4V; (4)VOH2 output High Voltage: VCC-0.8V; (5)output low voltage: 0.4V; (6)Input Leakage: ±10.0μA.

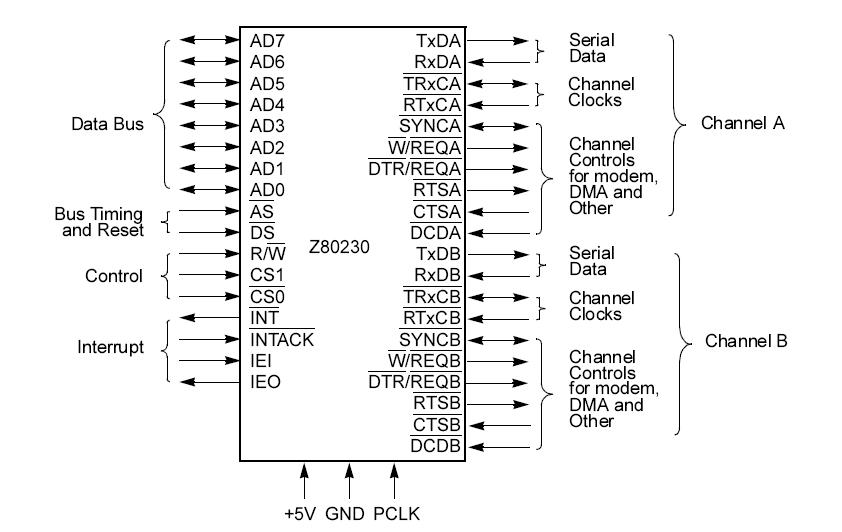

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 Z8023010VSC |
ZiLOG |
I/O Controller Interface IC 10MHz CMOS ESCC |
Data Sheet |
|
|
||||||||||
|
Z8023010VSC00TR |
|
IC Z8000 ESCC 44PLCC |
Data Sheet |
Negotiable |
|
||||||||||
