Product Summary
The 125NQ015 is a schottky rectifier. The 125NQ015 high current Schottky rectifier module has been optimized for ultra low forward voltage drop specifically for the OR-ing of parallel power supplies. The proprietary barrier technology allows for reliable operation up to 100℃ junction temperature. Typical applications are in parallel switching power supplies, converters, reverse battery protection, and redundant power subsystems.
Parametrics
125NQ015 absolute maximum ratings: (1)IF(AV) Max. Average Forward Current: 120A; (2)IFSM Max. Peak One Cycle Non-Repetitive: 10800A; (3)Surge Current: 1700A; (4)EAS Non-Repetitive Avalanche Energy: 9mJ; (5)IAR Repetitive Avalanche Current: 2A.
Features
125NQ015 features: (1)100℃ TJ operation; (2)Unique high power, Half-Pak module; (3)Optimized for OR-ing applications; (4)Ultra low forward voltage drop; (5)High frequency operation; (6)Guard ring for enhanced ruggedness and long term reliability; (7)High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance.

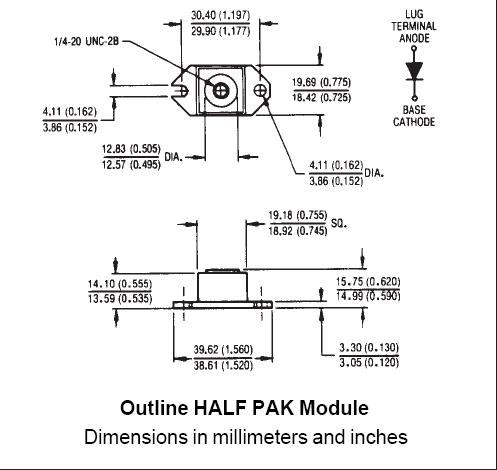

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 125NQ015 |
|
DIODE SCHOTTKY 15V 120A HALF-PAK |
Data Sheet |
Negotiable |
|
||||
|
125NQ015 (R) |
Other |
|
Data Sheet |
Negotiable |
|
||||
 |
125NQ015R |
Vishay |
Schottky (Diodes & Rectifiers) 120 Amp 15 Volt 10800 Amp IFSM |
Data Sheet |
Negotiable |
|
||||
|
125NQ015PbF |
Other |
|
Data Sheet |
Negotiable |
|
||||
