Product Summary

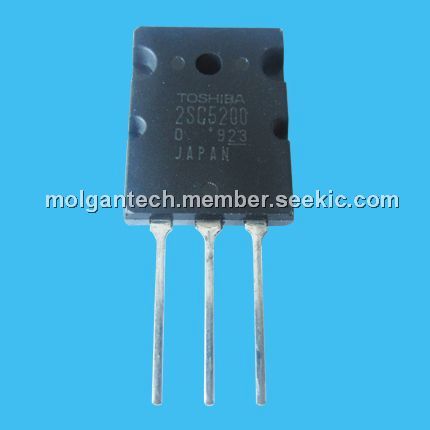

The 2SC5200 is a TOSHIBA transistor of silicon NPN triple diffused type.

Parametrics

2SC5200 absolute maximum ratings: (1)Collector-base voltage, VCBO: 230V; (2)Collector-emitter voltage, VCEO: 230V; (3)Emitter-base voltage, VEBO: 5V; (4)Collector current, IC: 15A; (5)Base current, IB: 1.5A; (6)Collector power dissipation(Tc = 25℃), PC: 150W; (7)Junction temperature, Tj: 150℃; (8)Storage temperature range, Tstg: -55 to 150℃.

Features

2SC5200 features: (1)High Current Capability; (2)High Power Dissipation; (3)High Collector-Emitter Breakdown Voltage: V(BR)CEO= 230V(Min); (4)Complement to Type 2SA1943.

Diagrams

2SC5200 package dimension
