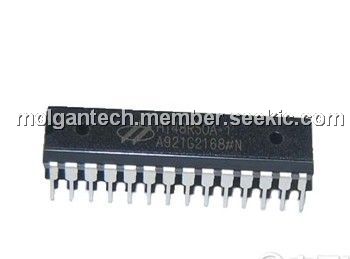

HT48R50A-1

DIP28, 8-bit, high performance, RISC architecture microcontroller, 3.3V~5.5V, 6-level subroutine nesting, 32768Hz

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~5.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~5.00

PartNumber:: HT48R50A-1

Brand:: Holtek Semiconductor Inc - HOLTEK | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Olin,Ms Stiny's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-11-11

From Other Seller

Part Number:HT48R50A-1
US $1.00 - 5.00
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
SIL9030CTU

US $2.50 - 5.10 / Piece
(0) Remove
Quantity:

piece

Product Summary

The HT48R50A-1 is 8-bit high performance, RISC architecture microcontroller device specifically designed for multiple I/O control product applications. The advantages of low power consumption, I/O flexibility, timer functions, oscillator options, HALT and wake-up functions, watchdog timer, buzzer driver, as well as low cost, enhance the versatility of the HT48R50A-1 to suit a wide range of application possibilities such as industrial control, consumer products, subsystem controllers, etc.

Parametrics

HT48R50A-1 absolute maximum ratings: (1)Supply Voltage: VSS-0.3V to VSS+6.0V; (2)Storage Temperature: -50 to 125℃; (3)Input Voltage: VSS-0.3V to VDD+0.3V; (4)Operating Temperature: -40 to 85℃.

Features

HT48R50A-1 features: (1)Operating voltage: fSYS=4MHz: 2.2V~5.5V, fSYS=8MHz: 3.3V~5.5V; (2)Low voltage reset function; (3)35 bidirectional I/O lines (max.); (4)1 interrupt input shared with an I/O line; (5)8-bit programmable timer/event counter with overflow interrupt and 8-stage prescaler; (6)16-bit programmable timer/event counter and overflow interrupts; (7)On-chip RC oscillator, external crystal and RC oscillator; (8)32768Hz crystal oscillator for timing purposes only; (9)Watchdog Timer; (10)4096×15 program memory ROM; (11)160×8 data memory RAM; (12)Buzzer driving pair and PFD supported; (13)HALT function and wake-up feature reduce power consumption; (14)6-level subroutine nesting; (15)Up to 0.5s instruction cycle with 8MHz system clock at VDD=5V; (16)Bit manipulation instruction; (17)15-bit table read instruction; (18)63 powerful instructions; (19)All instructions in one or two machine cycles; (20)28-pin SKDIP/SOP, 48-pin SSOP package.
