Product Summary

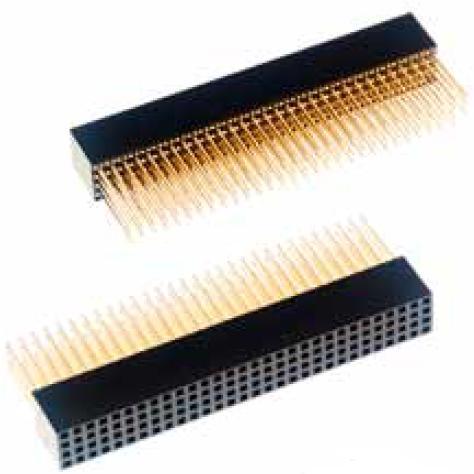

The 5P03-2021-DA is a 3M Connector for PC104 Plus Embedded Systems Applications. The connector conforms to PC/104 Embedded-PC Modules. The 5P03-2021-DA is offering 2 mm J3/P3 32-bit module in both press-fit and solder tail versions. J1/P1 and J2/P2 connectors are also available in the PC104 product line on Customer Drawings TS-2392 and TS-2395. The addition of the 5P03-2021-DA creates a full portfolio of options for customers high-speed, high-performance requirements.
Parametrics
5P03-2021-DA specifications: (1)Housings: Polyester nylon-6T (UL 94V-0); (2)Operating Temperature: -40℃ to +105℃; (3)Max Processing Temp: 230℃ for 60 seconds; 260℃ for 10 seconds; (4)Current Rating: 2 AMPS; (5)Insulation Resistance: 5,000 Megaohms Min; (6)Contact Resistance: 20 Milliohms Max; (7)Withstanding Voltage: 500 Vac.
Features
5P03-2021-DA features: (1)Connector for PC104 applications with support for PCI bus; (2)2 mm pitch connectors for high density applications; (3)Available in solder tail; (4)Pin-and-socket connectors; rugged and reliable 120 contact male/female headers; (5)Simple contact design to accommodate many standoff heights.
Diagrams
