AD9280ARSZRL

converter, SSOP, –0.3 to +6.5 V, single supply, 8-bit, multistage differential pipeline architecture

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.00~5.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $2.00~5.00

PartNumber:: AD9280ARSZRL

Brand:: Analog Devices - ADI | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Olin,Ms Stiny's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-11-11

From Other Seller

Part Number:AD9280ARSZRL
US $2.00 - 5.00
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

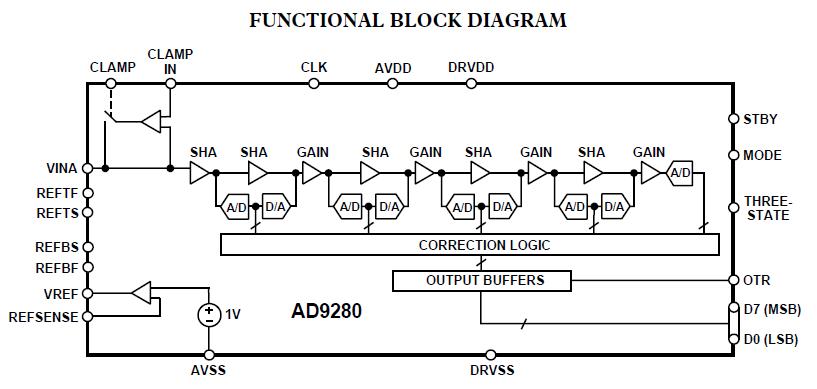

The AD9280ARSZRL is a monolithic, single supply, 8-bit, 32 MSPS analog-to-digital converter with an on-chip sample-and-hold amplifier and voltage reference. The AD9280ARSZRL uses a multistage differential pipeline architecture at 32 MSPS data rates and guarantees no missing codes over the full operating temperature range. The input of the AD9280ARSZRL has been designed to ease the development of both imaging and communications systems. The user can select a variety of input ranges and offsets and can drive the input either single-ended or differentially.

Parametrics

AD9280ARSZRL absolute maximum ratings: (1)AVDD: –0.3 to +6.5 V; (2)DRVDD: –0.3 to +6.5 V; (3)AVSS: –0.3 to +0.3 V; (4)AVDD: –6.5 to +6.5 V; (5)MODE: –0.3 to AVDD + 0.3 V; (6)CLK: –0.3 to AVDD + 0.3 V; (7)Digital Outputs: –0.3 to DRVDD + 0.3 V; (8)AIN: –0.3 to AVDD + 0.3 V; (9)VREF: –0.3 to AVDD + 0.3 V; (10)REFSENSE: –0.3 to AVDD + 0.3 V; (11)REFTF, REFTB: –0.3 to AVDD + 0.3 V; (12)REFTS, REFBS: –0.3 to AVDD + 0.3 V; (13)Junction Temperature: +150 ℃; (14)Storage Temperature: –65 to +150 ℃; (15)Lead Temperature 10 sec: +300 ℃.

Features

AD9280ARSZRL features: (1)CMOS 8-Bit 32 MSPS Sampling A/D Converter; (2)Pin-Compatible with AD876-8; (3)Power Dissipation: 95 mW (3 V Supply); (4)Operation Between +2.7 V and +5.5 V Supply; (5)Differential Nonlinearity: 0.2 LSB; (6)Power-Down (Sleep) Mode; (7)Three-State Outputs; (8)Out-of-Range Indicator; (9)Built-In Clamp Function (DC Restore); (10)Adjustable On-Chip Voltage Reference; (11)IF Undersampling to 135 MHz.
