Product Summary
The ADM2587EBRWZ is a fully integrated signal and power isolated data transceiver with ±15 kV ESD protection and are suitable for high speed communication on multipoint transmission lines. The ADM2587EBRWZ includes an integrated isolated dc-to-dc power supply, which eliminates the need for an external dc-to-dc isolation block. The applications of the ADM2587EBRWZ include: Isolated RS-485/RS-422 interfaces, Industrial field networks, and Multipoint data transmission systems.
Parametrics
ADM2587EBRWZ absolute maximum ratings: (1)Digital Input Voltage (DE, RE, TxD): -0.5 V to VDD + 0.5 V; (2)Digital Output Voltage (RxD): -0.5 V to VDD + 0.5 V; (3)Driver Output/Receiver Input Voltage: -9 V to +14 V; (4)Operating Temperature Range: -40℃ to +85℃; (5)Storage Temperature Range: -55℃ to +150℃; (6)ESD (Human Body Model) on A, B, Y, and Z pins: ±15 kV; (7)ESD (Human Body Model) on Other Pins: ±2 kV; (8)Lead Temperature Soldering (10 sec): 260℃; (9)Vapor Phase (60 sec): 215℃; (10)Infrared (15 sec): 220℃.
Features
ADM2587EBRWZ features: (1)Isolated RS-485/RS-422 transceiver, configurable as half or full duplex; (2)isoPower integrated isolated dc-to-dc converter; (3)±15 kV ESD protection on RS-485 input/output pins; (4)Complies with ANSI/TIA/EIA-485-A-98 and ISO 8482:1987(E); (5)ADM2582E data rate: 16 Mbps; (6)ADM2587E data rate: 500 kbps; (7)5 V or 3.3 V operation; (8)Connect up to 256 nodes on one bus; (9)Open- and short-circuit, fail-safe receiver inputs; (10)High common-mode transient immunity: >25 kV/μs; (11)Thermal shutdown protection; (12)Safety and regulatory approvals (pending).

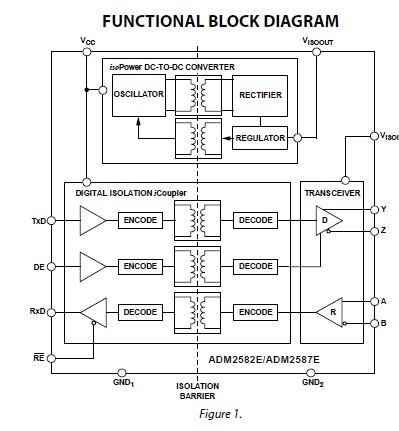

Diagrams
