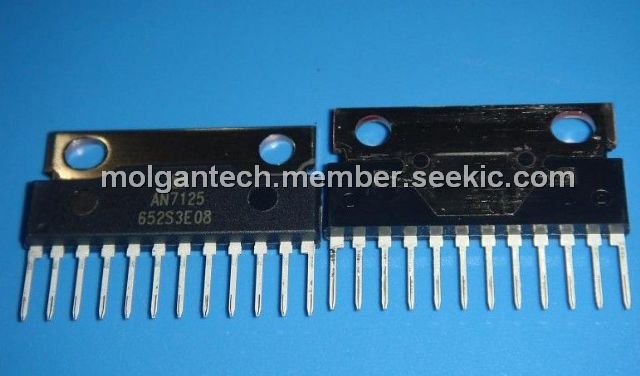

Product Summary
The AN7125 is a monolithic integrated circuit designed for 13.5 W (12 V,4 Ω) output audio power amplifier. It is a dual channel BTL IC suitable for stereo operation in radio cassette and TV application. It is suitable for Radio-cassette.
Parametrics
AN7125 absolute maximum ratings: (1)Supply voltage, VCC: 24 V; (2)Supply current, ICC: 6.0 A; (3)Power dissipation, PD: 38.5 W; (4)Operating ambient temperature, Topr: -25 to +75℃; (5)Storage temperature, Tstg: -55 to +150℃.
Features
AN7125 features: (1)Built-in muting pin; (2)Built-in stand by pin; (3)Built-in thermal shutdown protection circuit; (4)Built-in current limiting circuit; (5)High power: (13.5 W/12 V/4 Ω), (13.0 W/15 V/8 Ω); (6)Few external components; (7)Operating voltage range 6 V ~ 18 V (12 V typ.).

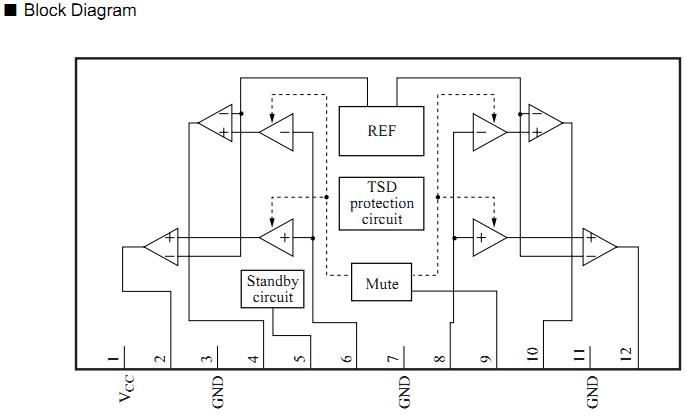

Diagrams
