Product Summary
The APT2X101D20J is an ultrafast soft recovery dual rectifier diode. The device is suitable for Anti-Parallel Diode, Switchmode Power Supply, Inverters, Free Wheeling Diode, Motor Controllers, Converters, Snubber Diode, Uninterruptible Power Supply (UPS), Induction Heating and High Speed Rectifiers.
Parametrics
APT2X101D20J absolute maximum ratings: (1)VR, Maximum D.C. Reverse Voltage: 200 Volts; (2)VRRM, Maximum Peak Repetitive Reverse Voltage: 200 Volts; (3)VRWM, Maximum Working Peak Reverse Voltage: 200 Volts; (4)IF(AV), Maximum Average Forward Current (TC = 102℃, Duty Cycle = 0.5): 100 Amps; (5)IF(RMS), RMS Forward Current (Square wave, 50% duty): 171 Amps; (6)IFSM, Non-Repetitive Forward Surge Current (TJ = 45℃, 8.3ms): 1000 Amps; (7)TJ, TSTG, Operating and StorageTemperature Range: -55 to 150℃.
Features
APT2X101D20J features: (1)Ultrafast Recovery Times; (2)Soft Recovery Characteristics; (3)Popular SOT-227 Package; (4)Low Forward Voltage; (5)High Blocking Voltage; (6)Low Leakage Current.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

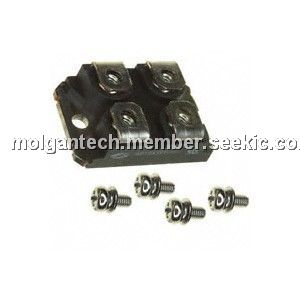

 APT2X101D20J |
|
DIODE DUAL PAR 100A 200V SOT-227 |
Data Sheet |
|
|
||||||||||||||||||||||
