Product Summary

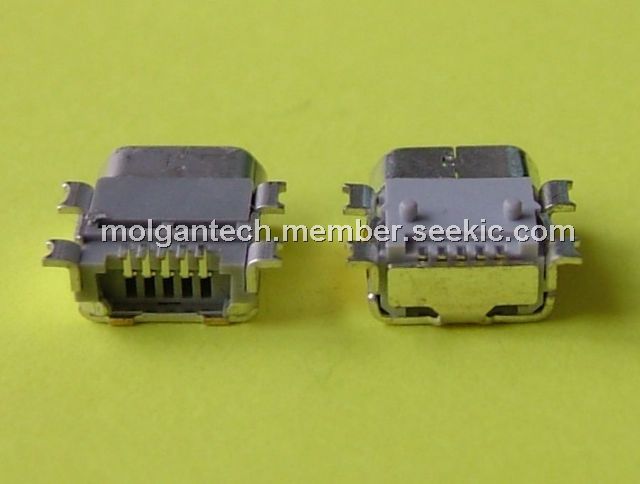

The 56579-0576 is a USB Connectors.
Parametrics
56579-0576 specifications: (1)Product Category: USB Connectors; (2)RoHS: Details; (3)Product: Mini USB Type AB Connectors; (4)Standard: USB; (5)Number of Ports: 1; (6)Pitch: 0.8 mm; (7)Contact Plating: Gold; (8)Contact Material: Copper Alloy; (9)Gender: Female; (10)Current Rating: 1 A; (11)Mounting Style: Through Hole; (12)Termination Style: Solder Tab; (13)Connector Type: Mini USB Type AB Receptacle; (14)Color: Gray; (15)Features: Metal shielding for ESD protection; (16)Flammability Rating: UL 94 V-0; (17)Insulation Resistance: 100 MOhms; (18)Mounting Angle: Right; (19)Number of Positions / Contacts: 5; (20)Operating Temperature Range: 0 ℃ to + 50 ℃; (21)Packaging: Reel; (22)Series: 56579; (23)Standard Pack Qty: 800; (24)Voltage Rating: 30 V.
Features
56579-0576 features: (1)Product Family: I/O Connectors; (2)Series: 56579; (3)Application: Wire-to-Board; (4)Component Type: Receptacle; (5)Overview :usb_otg_onthego; (6)Product Name: USB OTG (On-The-Go); (7)Type: Mini-AB (OTG).
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 56579-0576 |
Molex |
USB Connectors USB Mini-AB Recept On-The-Go Rt.Angle |
