Product Summary

The B76010D3379M025 is a polymer chip capacitor from EPCOS.

Parametrics

B76010D3379M025 absolute maximum ratings: (1)Technology: Tantalum Polymer; (2)Terminals: Tinned; (3)Rated voltage (up to 85℃), VR: 2.5 to 16VDC; (4)Rated capacitance (20℃, 120 Hz), CR: 33 to 470mF; (5)Capacitance tolerance, DCR: ±20%; (6)Maximum equivalent series resistance, ESRmax: 12 to 80mW; (7)Operating temperature range, Top: -55 to +105℃.

Features

B76010D3379M025 features: (1)High volumetric efficiency; (2)Ultra-low ESR; (3)High permissible ripple current; (4)Only 20% derating recommended; (5)Stable temperature and frequency; (6)Operating temperature: 55 to +105℃; (7)No ignition failure mode; (8)Lead-free and material content compatible with RoHS.

Diagrams

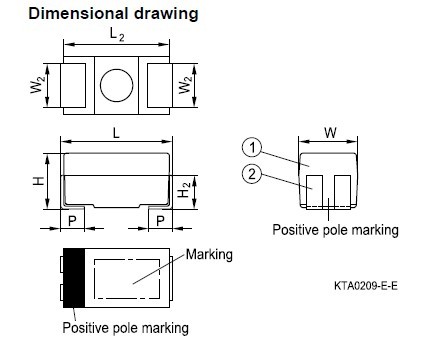

B76010D3379M025 Dimensional drawing

B76002V3379M 45K12
B76002V3379M 45K12

CAP TANT 330UF 2.5V 20% 2917
