FGA25N120

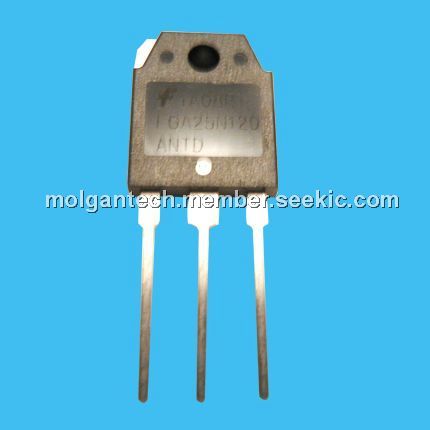

proprietary trench design, 1200V NPT IGBT, advanced NPT technology, 1200V, 50A, TO-3P

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.00~3.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $2.00~3.00

PartNumber:: FGA25N120

Brand:: Fairchild Semiconductor - Fairchild | Pack: TO | D/C: 07+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Olin,Ms Stiny's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-08-28

From Other Seller

Part Number:FGA25N120
US $2.00 - 3.00
74AHC2G08VS SOP-8

US $2.00 - 2.00 / Piece
(0) Remove
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

Using Fairchild’s proprietary trench design and advanced NPT technology, the 1200V NPT IGBT FGA25N120 offers superior conduction and switching performances, high avalanche ruggedness and easy parallel operation. The FGA25N120 is well suited for the resonant or soft switching application such as induction heating, microwave oven, etc.

Parametrics

FGA25N120 absolute maximum ratings: (1)Collector-Emitter Voltage, VCES: 1200V; (2)Gate-Emitter Voltage, VGES: ±20V; (3)Collector Current @ TC = 25℃, IC: 50A; (4)Collector Current @ TC = 100℃, IC: 25A; (5)Pulsed Collector Current, ICM: 90A; (6)Diode Continuous Forward Current @ TC = 100℃, IF: 25A; (7)Diode Maximum Forward Current, IFM: 150A; (8)Maximum Power Dissipation @ TC = 25℃, PD: 312W; (9)Maximum Power Dissipation @ TC = 100℃, PD: 125W; (10)Operating Junction Temperature, TJ: -55 to +150℃; (11)Storage Temperature Range, Tstg: -55 to +150℃.
