Product Summary

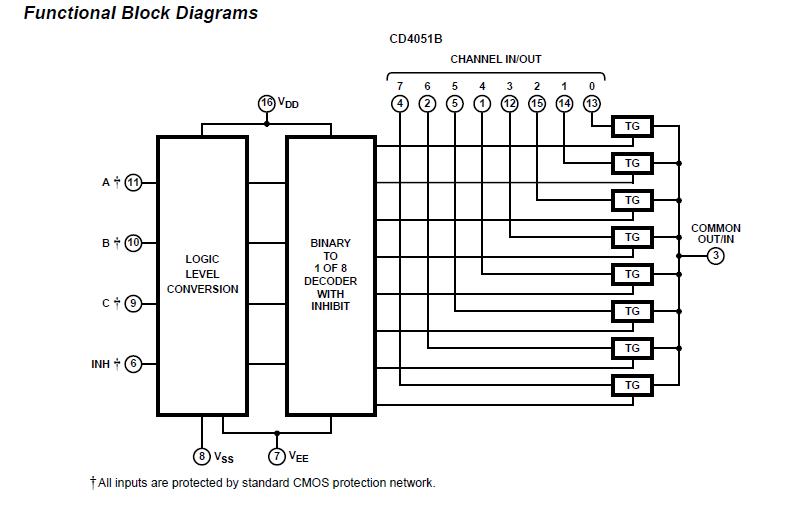

The CD4052BF is a single 8-Channel multiplexer having three binary control inputs, A, B, and C, and an inhibit input. The three binary signals select 1 of 8 channels to be turned on and connect one of the 8 inputs to the output. The CD4052BF is a differential 4-Channel multiplexer having two binary control inputs, A and B, and an inhibit input. The two binary input signals of the CD4052BF select 1 of 4 pairs of channels to be turned on and connect the analog inputs to the outputs. The applications of the CD4052BF are Analog and Digital Multiplexing and Demultiplexing, A/D and D/A Conversion, Signal Gating.

Parametrics

CD4052BF absolute maximum ratings: (1)Supply Voltage (V+ to V-)Voltages Referenced to VSS Terminal : -0.5V to 20V; (2)DC Input Voltage Range: -0.5V to VDD +0.5V; (3)DC Input Current, Any One Input: ±10mA.

Features

CD4052BF features: (1)Wide Range of Digital and Analog Signal Levels. Digital: 3V to 20V. Analog: 20VP-P; (2)Low ON Resistance, 125Ω (Typ) Over 15VP-P Signal Input Range for VDD-VEE = 18V; (3)High OFF Resistance, Channel Leakage of 100pA (Typ) at VDD-VEE = 18V; (4)Logic-Level Conversion for Digital Addressing Signals of 3V to 20V (VDD-VSS = 3V to 20V) to Switch Analog Signals to 20VP-P (VDD-VEE = 20V); (5)Matched Switch Characteristics, rON = 5Ω (Typ) for VDD-VEE = 15V; (6)Very Low Quiescent Power Dissipation Under All Digital-Control Input and Supply Conditions, 0.2μW (Typ) at VDD-VSS = VDD-VEE = 10V; (7)Binary Address Decoding on Chip; (8)5V, 10V, and 15V Parametric Ratings; (9)100% Tested for Quiescent Current at 20V; (10)Maximum Input Current of 1μA at 18V Over Full Package Temperature Range, 100nA at 18V and 25oC; (11)Break-Before-Make Switching Eliminates Channel Overlap.
