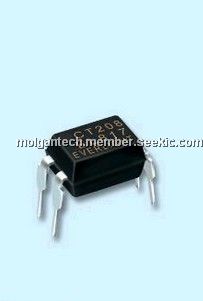

EL817(A)-F

4 pin DIP, phototransistor, 60 mA, 6 V, High isolation voltage, RoHS compliant, Compact small outline package, Pb free

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~0.90 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~0.90

PartNumber:: EL817(A)-F

Brand:: Everlight Electronics Co., Ltd - Everlight | Pack: DIP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Olin,Ms Stiny's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-09-19

From Other Seller

Part Number:EL817(A)-F
US $0.10 - 0.90
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The EL817(A)-F is a 4 pin DIP phototransistor. The device consists of an infrared emitting diodes, optically coupled to a phototransistor detector. The EL817(A)-F is packaged in a 4-pin DIP package and available in wide-lead spacing and SMD option. The applications of the EL817(A)-F include Programmable controllers, System appliances, measuring instruments, Telecommunication equipments, Home appliances, such as fan heaters, etc and Signal transmission between circuits of different potentials and impedances.

Parametrics

EL817(A)-F absolute maximum ratings: (1)input, Forward current, IF: 60 mA; Peak forward current (1us, pulse), IFP: 1 A; Reverse voltage, VR: 6 V; Power dissipation Derating factor ( aboveTa = 100℃), PD: 100 mW; 2.9 mW/℃; (2)output, Power dissipation Derating factor (above Ta = 100℃), PC: 150 mW; 5.8 mW/℃; Collector current, IC: 50 mA; Collector-Emitter voltage, VCEO: 35 V; Emitter-Collector voltage, VECO: 6 V; (3)Total power dissipation, PTOT: 200 mW; (4)Isolation voltage, VISO: 5000 V rms; (5)Operating temperature, TOPR: -55 to +110℃; (6)Storage temperature, TSTG: -55 to +125℃; (7)Soldering temperature, TSOL: 260℃.

Features

EL817(A)-F features: (1)Current transfer ratio (CTR: 50to 600% at IF =5mA, VCE =5V); (2)High isolation voltage between input and output (Viso=5000 V rms ); (3)Creepage distance >7.62 mm; (4)Operating temperature up to +110℃; (5)Compact small outline package; (6)Pb free and RoHS compliant; (7)UL approved (No. E214129); (8)VDE approved (No. 132249); (9)SEMKO approved (No. 716108); (10)NEMKO approved (No. P08209467); (11)DEMKO approved (No. 314683); (12)FIMKO approved (No. FI 224433); (13)CSA approved (No. 1143601).
