Product Summary
The GM76C88ALK-15 is a 65536 bit static random access memory organized as 8192 words by 8 bits using CMOS technology and operated from a single 5V supply. Advanced circuit techniques provide low power feature with a maximum operating current of 40mA and standby current of max 100uA. Its very low standby power requirement makes the GM76C88ALK-15 ideal for applications requiring nonvolatile storage with back up batteries. The asynchronous and static nature of the GM76C88ALK-15 requires no external clock or refreshing circuits.
Parametrics
GM76C88ALK-15 absolute maximum ratings: (1)Ambient Temperature under Bias: 0℃ to 70℃; (2)Storage Temperature: -65℃ to 150℃; (3)Soldering Temperature and Time: 260℃, 10s (at lead); (4)Supply voltage: -0.5 to 7V; (5)Input Voltage: -0.5 to 7V; (6)Power dissipation: 1.0W.
Features
GM76C88ALK-15 features: (1)Fast Access Time: 120/150ns; (2)Low power Operation: standby: 2μA; Operation: 25mA; (3)Completely Static RAM: No clock or timing strobe required; (4)Non-Volatile Storage with Back-up Batteries; (5)3-state output with wired-OR capability; (6)Directly TTL Compatible: All inputs and outputs; (7)Single power supply (5V±10%); (8)Standard 28 DIP, SOP and S-DIP.

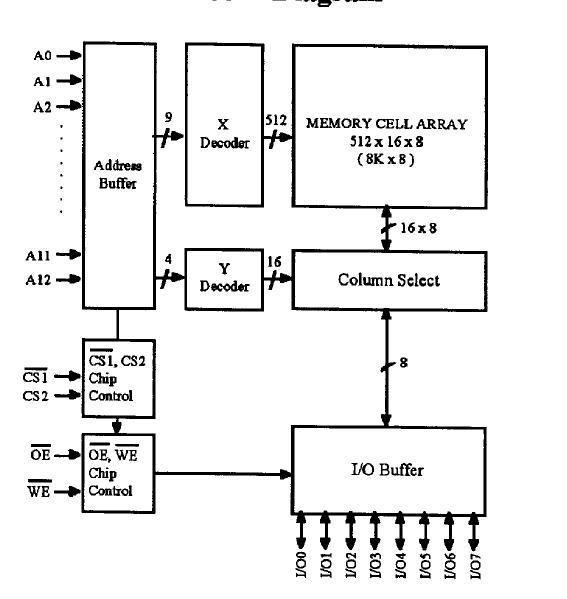

Diagrams
 |
