Product Summary
This specification of 748566-1 covers the requirements for the application of AMPLIMITE HDP--22 Crimp Snap--In Contact Connectors with all--plastic contact retention and the 22DF Contacts used in the connectors. The 748566-1 will mate with any size 22 Subminiature D connector that has dimensions complying with MIL--C--24308. The 748566-1 is available in shell sizes 1 through 5.
Parametrics
748566-1 absolute maximum ratings: (1)Voltage: 250 volts AC; (2)Current: Fully loaded and energized connectors; (3)26 AWG: 1.1 amperes; (4)Temperature: -55 to 105℃.
Features
748566-1 features: (1)Manufacturer: TE Connectivity; (2)Product Category: D-Subminiature Connectors; (3)RoHS: Yes; (4)Product: High Density Hoods & Connectors; (5)Number of Positions / Contacts: 26; (6)Contact Plating: Tin over Copper; (7)Shell Plating: Tin over Copper; (8)Gender: Female; (9)Mounting Style: PCB; (10)Termination Style: Crimp; (11)Color: Black; (12)Connector Type: D-Sub Receptacle; (13)Contact Material: Steel; (14)Features: Standard Cable Connectors; (15)Flammability Rating: UL 94 V-0; (16)Housing Material: Nylon; (17)Packaging: Bulk; (18)Series: HDP-22; (19)Standard Pack Qty: 800.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

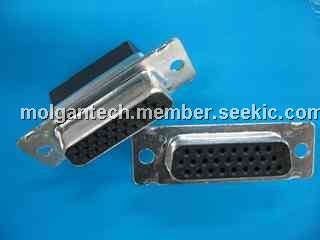

 748566-1 |
TE Connectivity / AMP |
D-Sub High Density Connectors RECP 26P GRND INDNTS |
Data Sheet |
Negotiable |
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
 |
748507-1 |
TE Connectivity / AMP |
D-Sub Standard Connectors 15 RCPT CS W/SL HDP-20 |
Data Sheet |
|
|
||||||||||||
 |
74852-01-028 FLX-2535 Black |
PacTec |
Enclosures, Boxes, & Cases 3.3 X 2.5 X 1.0" LID BLACK |
Data Sheet |
|
|
||||||||||||
 |

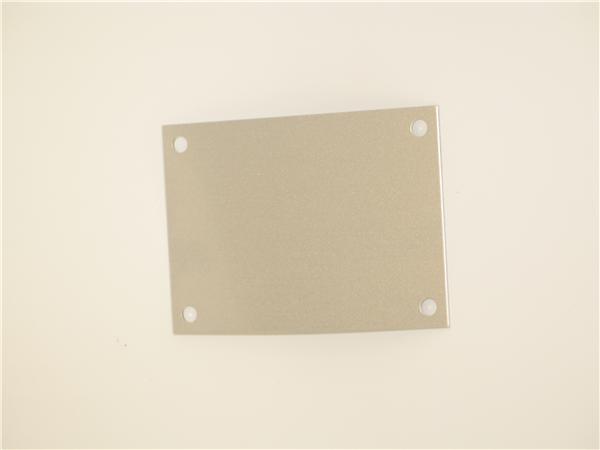

74853-01 FLXT-2535 Alum |
PacTec |
Enclosures, Boxes, & Cases 3.5 x 2.5 LID ALUMINUM |
Data Sheet |
|
|
||||||||||||
 |
748536-1 |
TE Connectivity / AMP |
D-Sub Standard Connectors HDP20 9P D KIT |
Data Sheet |
Negotiable |
|
||||||||||||
 |
748554-2 |
TE Connectivity |
D-Sub Standard Connectors OVRMLD RCPT ASSY 9P HDP-20 CN |
Data Sheet |
|
|
||||||||||||
|
748565-1 |
TE Connectivity / AMP |
D-Sub High Density Connectors RECP 15P GRND INDNTS |
Data Sheet |
Negotiable |
|
||||||||||||
