HCMS-2965

high performance, CMOS 5 x 7, alphanumeric display, Wave solderable, 5.5 V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $10.00~50.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $10.00~50.00

PartNumber:: HCMS-2965

Brand:: AVAGO TECHNOLOGIES LIMITED - Avago | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Olin,Ms Stiny's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-11-28

From Other Seller

Part Number:HCMS-2965
US $10.00 - 50.00
IRF9540NPBF

US $0.50 - 3.20 / Piece
(0) Remove
AT24C02BN-SH-T

US $0.08 - 0.15 / Piece
(0) Remove
Quantity:

piece

Product Summary

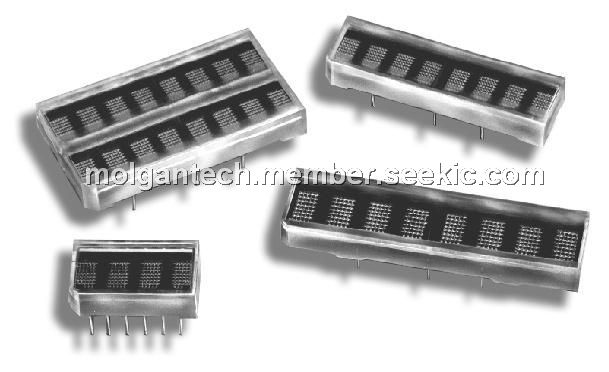

The HCMS-2965 is a high performance CMOS 5 x 7 alphanumeric display. The HCMS-2965 is high performance, easy to use dot matrix displays driven by on-board CMOS ICs. Each display can be directly interfaced with a microprocessor, thus eliminating the need for cumbersome interface components. The serial IC interface of the HCMS-2965 allows higher character count information displays with a minimum of data lines. A variety of colors, font heights, and character counts gives designers a wide range of product choices for their specific applications and the easy to read 5 x 7 pixel format allows the display of uppercase, lower case, Katakana, and custom user-defined characters. The display of the HCMS-2965 is stackable in the x- and y- directions, making them ideal for high character count displays.

Parametrics

HCMS-2965 absolute maximum ratings: (1)Logic Supply Voltage, VLOGIC to GNDLOGIC: -0.3 V to 7.0 V; (2)LED Supply Voltage, VLED to GNDLED: -0.3 V to 5.5 V; (3)Input Voltage, Any Pin to GND: -0.3 V to VLOGIC +0.3 V; (4)Free Air Operating Temperature Range TA: -40℃ to +85℃; (5)Relative Humidity (noncondensing): 85%; (6)Storage Temperature, TS: 55℃ to 100℃.

Features

HCMS-2965 features: (1)Easy to use; (2)Interfaces directly with microprocessors; (3)0.15character height in 4, 8, and 16 (2x8) character packages; (4)0.20character height in 4 and 8 character packages; (5)Rugged X- and Y-stackable package; (6)Serial input; (7)Convenient brightness controls; (8)Wave solderable; (9)Offered in five colors; (10)Low power CMOS technology; (11)TTL compatible.
