Product Summary
The PVR-502W is used as DVD Player drivers.
Parametrics
PVR-502W absolute maximum ratings: (1)Tracking Sensitivity: 0.82mm/V(at 5Hz); (2)Tracking Resonance Frequency: 50Hz; (3)Focusing Sensitivity: 1.20mm/V(at 5Hz); (4)Focusing Resonance Frequency: 46Hz; (5)RF Signal, DVD: 1.00Vp-p; (6)RF Signal, CD: 1.00Vp-p; (7)Tracking Error Signal, DVD: 2.40Vp-p; (8)Tracking Error Signal, CD: 0.14Vp-p; (9)Focusing Error Signal, DVD: 0.70Vp-p; (10)Focusing Error Signal, CD: 0.59Vp-p; (11)Dimensions: 51.5(D) 37.4(W) 17.1(H)mm; (12)Weight: 17g.
Features
PVR-502W features: (1)This is a simple optical system with a 1can 2-wavelength LD that at the same time provides high performance; (2)Although the design is simple, the high playability actuator ensures high precision; (3)The size of the pick-up makes it adaptable to a variety of drive configurations; (4)Tracking error signal detection: DVD: 1-beam method, CD: 3-beam method; (5)Astigmatic method used for focus error signal detection.

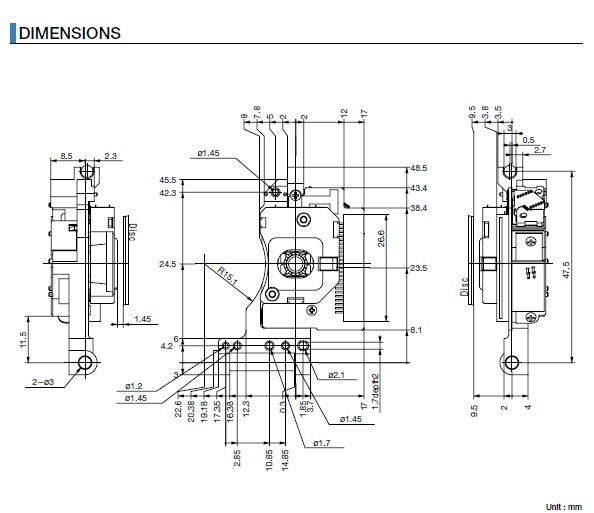

Diagrams
 |
