Product Summary
The HFA240NJ40C is a hexfred diode which is optimized to reduce losses and EMI/RFI in high frequency power conditioning systems. An extensive characterization of the recovery behavior for different values of current, temperature and di/dt simplifies the calculations of losses in the operating conditions. The softness of the recovery eliminates the need for a snubber in most applications.
Parametrics
HFA240NJ40C absolute maximum ratings: (1)Cathode-to-Anode Voltage: 400 V; (2)TC = 25°C Continuous Forward Current :244A; (3)TC = 100°C Continuous Forward Current :122A; (4)Single Pulse Forward Current :900A; (5)EAS Non-Repetitive Avalanche Energy:1.4 mJ; (6)TC = 25°C, Maximum Power Dissipation: 460W; (7)TC = 100°C, Maximum Power Dissipation: 185W; (8)TJ Operating Junction and TSTG Storage Temperature Range:-55 to +150°C.
Features
HFA240NJ40C features: (1)Reduced RFI and EMI; (2)Reduced Snubbing; (3)Extensive Characterization of Recovery Parameters.

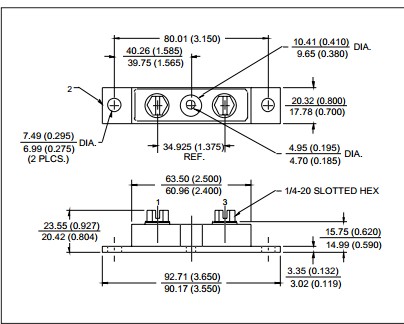

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 HFA240NJ40C |
|
DIODE HEXFRED 400V 244A TO-244AB |
Data Sheet |
Negotiable |
|
||||||
|
HFA240NJ40CPBF |
|
DUAL DIODE ULTRAFAST 240A CC |
Data Sheet |
|
|
||||||
