ICL3223IV-T

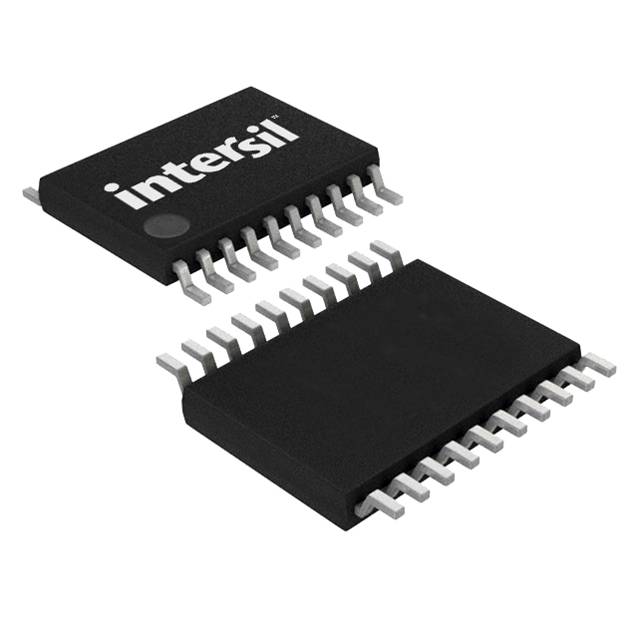

20 Ld TSSOP, Wide Power Supply, low supply current, 15kV ESD Protected, transmitter/receiver

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~10.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~10.00

PartNumber:: ICL3223IV-T

Brand:: Intersil Corporation - Intersil | Pack: DIP | D/C: 04+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Olin,Ms Stiny's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-09-18

From Other Seller

Part Number:ICL3223IV-T
US $1.00 - 10.00
QM75DY-H

US $16.00 - 30.00 / Piece
(0) Remove
P103W

US $15.00 - 22.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The ICL3223IV-T is a 3.0V to 5.5V powered RS-232 transmitter/receiver which meets ElA/TIA-232 and V.28/V.24 specifications, even at VCC = 3.0V. The ICL3223IV-T features an automatic powerdown function which powers down the on-chip power-supply and driver circuits. This occurs when an attached peripheral device is shut off or the RS-232 cable is removed, conserving system power automatically without changes to the hardware or operating system. The ICL3223IV-T is fully compatible with 3.3V only systems, mixed 3.3V and 5.0V systems, and 5.0V only systems.

Parametrics

ICL3223IV-T absolute maximum ratings: (1)VCC to Ground:-0.3V to 6V; (2)V+ to Ground:-0.3V to 7V; (3)V- to Ground:+0.3V to -7V; (4)V+ to V- :14V; (5)Input Voltages: TIN, FORCEOFF, FORCEON, EN, SHDN:-0.3V to 6V, RIN:±25V; (6)Output Voltages: TOUT:±13.2V, ROUT, INVALID:-0.3V to VCC +0.3V; (7)Short Circuit Duration: TOUT:Continuous.

Features

ICL3223IV-T features: (1)Pb-Free Plus Anneal Available as an Option (RoHS Compliant); (2)15kV ESD Protected (Human Body Model); (3)Drop in Replacements for MAX3221, MAX3222, MAX3223, MAX3232, MAX3241, MAX3243, SP3243; (4)RS-232 Compatible with VCC = 2.7V; (5)Meets EIA/TIA-232 and V.28/V.24 Specifications at 3V ; (6)Latch-Up Free; (7)On-Chip Voltage Converters Require Only Four External 0.1μF Capacitors; (8)Manual and Automatic Powerdown Features (Except ICL3232); (9)Receiver Hysteresis For Improved Noise Immunity; (10)Guaranteed Minimum Data Rate:250kbps; (11)Guaranteed Minimum Slew Rate:6V/μs; (12)Wide Power Supply Range:Single +3V to +5.5V; (13)Low Supply Current in Powerdown State:1μA.
