Product Summary
The IDT70V06L25PF is a high-speed 16K x 8 Dual-Port Static RAM. The IDT70V06L25PF is designed to be used as a stand-alone 128K-bit Dual-Port Static RAM or as a combination MASTER/SLAVE Dual-Port Static RAM for 16-bit-or-more word systems. Using the IDT MASTER/SLAVE Dual-Port Static RAM approach in 16-bit or wider memory system applications results in full-speed, error-free operation without the need for additional discrete logic. The IDT70V06L25PF provides two independent ports with separate control, address, and I/O pins that permit independent, asynchronous access for reads or writes to any location in memory.
Parametrics
IDT70V06L25PF absolute maximum ratings: (1)Terminal Voltage with Respect to GND: -0.5 to +4.6 V; (2)Temperature Under Bias: -55 to +125℃; (3)Storage Temperature: -55 to +125℃; (4)DC Output Current: 50 mA.
Features
IDT70V06L25PF features: (1)True Dual-Ported memory cells which allow simultaneous reads of the same memory location; (2)High-speed access; (3)Low-power operation; (4)IDT70V06 easily expands data bus width to 16 bits or more using the Master/Slave select when cascading more than one device; (5)Interrupt Flag; (6)On-chip port arbitration logic; (7)Full on-chip hardware support of semaphore signaling between ports; (8)Fully asynchronous operation from either port; (9)Battery backup operation—2V data retention; (10)TTL-compatible, single 3.3V (±0.3V) power supply; (11)Available in 68-pin PGA and PLCC, and a 64-pin TQFP; (12)Industrial temperature range (-40 to +85℃) is available for selected speeds.

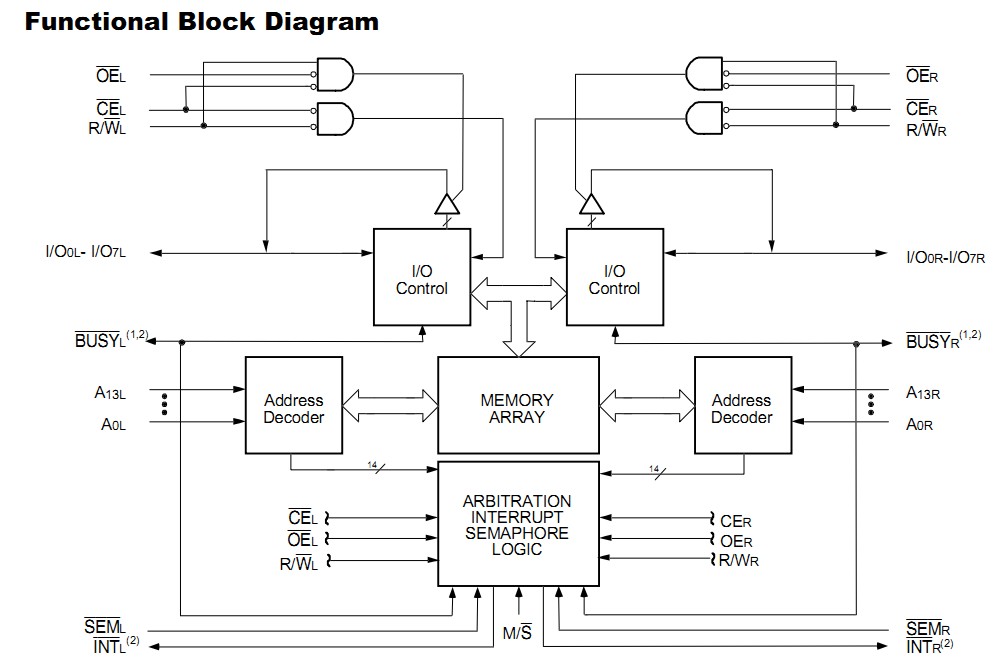

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 IDT70V06L25PF |
|
IC SRAM 128KBIT 25NS 64TQFP |
Data Sheet |
|
|
||||||||||||||||||||||
|
IDT70V06L25PF8 |
|
IC SRAM 128KBIT 25NS 64TQFP |
Data Sheet |
|
|
||||||||||||||||||||||
|
IDT70V06L25PFI |
|
IC SRAM 128KBIT 25NS 64TQFP |
Data Sheet |
|
|
||||||||||||||||||||||
|
IDT70V06L25PFI8 |
|
IC SRAM 128KBIT 25NS 64TQFP |
Data Sheet |
|
|
||||||||||||||||||||||
