Product Summary

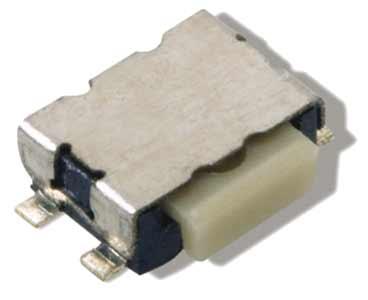

The KMS231GP is a Microminiature Side Actuated Tact Switch for SMT.

Parametrics

KMS231GP absolute maximum ratings: (1)maximum power: 1 VA silver; 0.2 VA gold; (2)maximum voltage: 50 VDC silver; 50 VDC gold; (3)maximum current DC: 50 mA silver; 10 mA gold; (4)minimum current DC: 1 mA silver; 1 mA gold; (5)dielectric strength: 250 VDC; (6)life expectancy: 100,000 operations; (7)contact resistance: ≤100 mΩ; (8)insulation resistance: 109 ; (9)bounce time: ≤ 3 ms.

Features

KMS231GP features: (1)Compact size; (2)Excellent tactile feel; (3)Compatible with lead free soldering; (4)Grounded cover for EMC protection; (5)Date code marking.

Diagrams

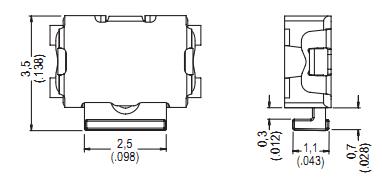

KMS231GP dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
KMS231GPLFS
KMS231GPLFS
C&K Components
Tactile & Jog Switches Switch Tact Mini 250 Gf Slv Gwing
Data Sheet
0-11200: $0.13
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
KMS223G LFG
KMS223G LFG
C&K Components
Tactile & Jog Switches Tact
Data Sheet
0-11100: $0.16
KMS231GLFS
KMS231GLFS
C&K Components
Tactile & Jog Switches Switch Tact Spst-No Mom Smt Gull
Data Sheet
0-1: $0.20
1-25: $0.19
25-100: $0.17
100-250: $0.17
KMS231GPLFS
KMS231GPLFS
C&K Components
Tactile & Jog Switches Switch Tact Mini 250 Gf Slv Gwing
Data Sheet
0-11200: $0.13
KMS233GPLFG
KMS233GPLFG
C&K Components
Tactile & Jog Switches Switch Tact Mini 250 Gf Gld Gwing
Data Sheet
0-1: $0.25
1-25: $0.23
25-100: $0.20
100-500: $0.18
KMS233GLFG
KMS233GLFG
C&K Components
Tactile & Jog Switches Switch Tact Spst-No Mom Smt Gull
Data Sheet
0-1: $0.20
1-25: $0.17
25-100: $0.16
100-250: $0.15
KMS233G
KMS233G
C&K Components
Tactile & Jog Switches 4.6x3.5x1.42 GOLD
Data Sheet
0-11250: $0.14
