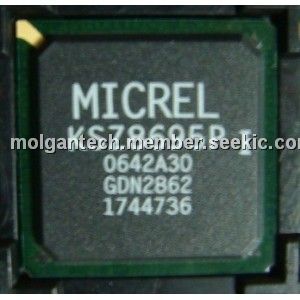

KSZ8695PI

Product Summary

The KSZ8695PI is a Multi-Port PCI Gateway Solution. It delivers a new level of networking integration, performance, and overall BOM cost savings, enabling original equipment manufacturers (OEMs) to provide customers with feature-rich, low-cost solutions for the residential gateway and small office environment. The applications of the KSZ8695PI are Multi-port wireless VoIP gateway, Wireless mesh network node, RG + combo 802.11 a/b/g/n access point, Multimedia gateway, Digital audio access point, Network storage element, Multi-port broadband gateway, Multi-port firewall and VPN appliances, Combination wireless and wireline gateway, Fiber-to-the-home managed CPE.

Parametrics

KSZ8695PI absolute maximum ratings: (1)Supply Voltage: VDDA1.8,VDD1.8): –0.5V to +2.4V, VDDA3.3,VDD3.3: –0.5V to +4.0V; (2)Input Voltage (all inputs):–0.5V to +4.0V; (3)Output Voltage (all outputs):–0.5V to +4.0V; (4)Lead Temperature (soldering, 10sec.):270℃; (5)Pb (Lead) Free Temperature (soldering, 10sec.):260℃; (6)Storage Temperature (Ts):–55℃ to +150℃.

Features

KSZ8695PI features: (1)ARM9 core at 166MHz; (2)8KB I-cache and 8KB D-cache; (3)Memory management unit (MMU) for Linux and WinCE; (4)32-bit ARM and 16-bit thumb instruction sets for smaller memory footprints; (5)Version PCI 2.1; (6)Supports bus mastership or guest-mode; (7)Supports normal and memory-mapped I/O; (8)Support for miniPCI and cardbus peripherals; (9)100BASE-FX mode option on the WAN port and one LAN port; (10)Automatic MDI/MDI-X crossover on all ports; (11)Wire-speed, non-blocking switch; (12)802.1Q tag-based VLAN (16 VLANs, full range VID); (13)Port-based VLAN; (14)QoS/CoS packet prioritization support: per port, 802.1p, and DiffServ-based; (15)64KB on-chip frame buffer SRAM; (16)VLAN ID and 802.1P tag/untag option per port; (17)802.1D Spanning Tree Protocol support; (18)8/16/32-bit external I/O interface supporting PCMCIA or generic CPU/DSP host I/F; (19)Sixteen general purpose input/output (GPIO); (20)Two 32-bit timer counters (one watchdog); (21)Interrupt controller.

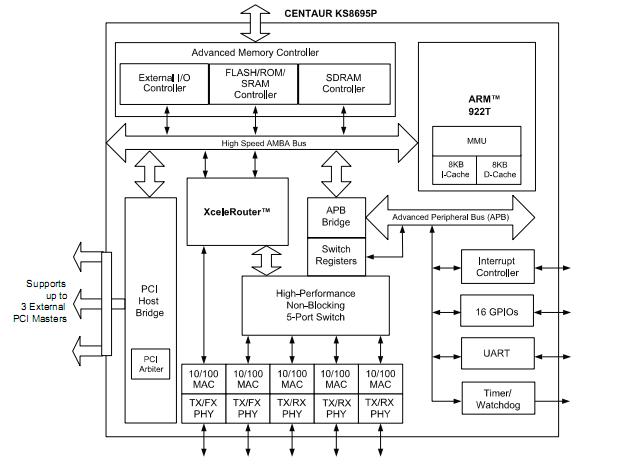

Diagrams
