Product Summary
The LB1630 is a low-saturation bidireotional motor driver IC for use in low voltage applications. It is especially suited for use in small-sized low voltage motors for printers, cassette tape recorders, and consumer equipment.
Parametrics
LB1630 absolute maximum ratings: (1)maximum supply voltage, VCCmax: -0.3 to 7.0V; (2)output supply voltage, VOUT: -0.3 to VCC+ VF; (3)input supply voltage, VIN: -0.3 to 7.0V; (4)allowable load resistance, RMmin: 3ohm; (5)GND pin flow-out current, IGND: 2A; (6)allowable power dissipation, Pdmax: 785mW; (7)operating temperature, Topr: -20 to 75℃; (8)storage temperature, Tstg: -40 to 125℃.
Features
LB1630 features: (1)capable of operating from a low voltage, low current dissipation at the standby mode; (2)low saturation voltage; (3)on-chip spark killer diodes.

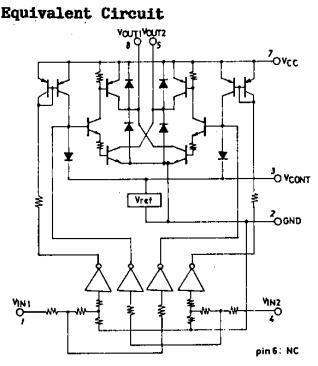

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LB1630 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
