Product Summary

The M22-6053005 is a PC/104 connector.

Parametrics

M22-6053005 specifications: (1)Manufacturer: Harwin; (2)Product Category: PC / 104 Connectors; (3)RoHS: Details; (4)Product Type: Stackthrough; (5)Number of Positions / Contacts: 9; (6)Termination Style: Pin; (7)Contact Plating: Gold; (8)Pitch: 1.25 mm; (9)Factory Pack Quantity: 9.

Features


Diagrams

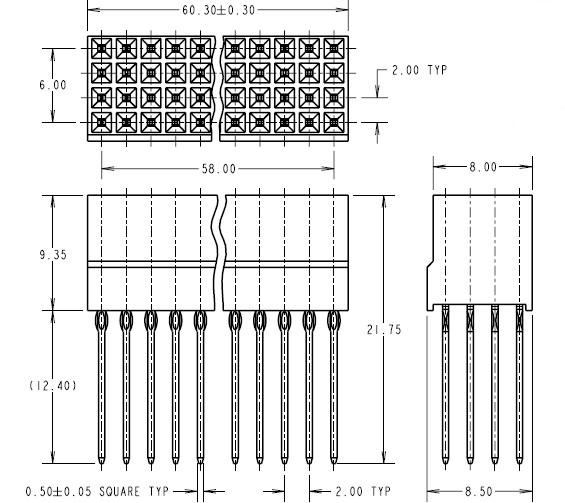

M22-6053005 dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
M22-6053005
M22-6053005
Harwin
PC / 104 Connectors 2mm 30P STACKTHRU GOLD PRESS FIT
Data Sheet
0-1: $19.52
1-10: $17.73
10-25: $15.62
25-50: $14.06
