Product Summary

The MIC2199BMLTR is a high-power 300kHz synchronous buck DC-to-DC controller housed in a small 4mm × 4mm MLF 12-lead package. The MIC2199BMLTR operates from a wide 4.5V to 32V input and can be programmed for output voltages from 0.8V to 6V. The wide input voltage capability makes the MIC2199BMLTR an ideal solution for point-of-load DC-to-DC conversion in 5V, 12V, 24V, and 28V systems. The 300kHz switching frequency allows the use of a small inductor and small output capacitors. The current mode PWM control along with the external COMP pin allows for ease of stability compensation and fast transient response across a wide range of applications.

Parametrics

MIC2199BMLTR absolute maximum ratings: (1)Analog Supply Voltage (VIN): +34V; (2)Digital Supply Voltage (VDD): +7V; (3)Driver Supply Voltage (BST): VIN + 7V; (4)Sense Voltage (VOUT, CSH): 7V to –0.3V; (5)Enable Pin Voltage (VEN/UVLO): VIN; (6)Power Dissipation (PD)4×4 MLF: 665mW @ TA = 85℃; (7)Ambient Storage Temperature (TS): –65℃ to +150℃.

Features

MIC2199BMLTR features: (1)4.5V to 32V input range; (2)4mm×4mm MLF package; (3)300kHz PWM operation; (4)95% efficiency; (5)Output voltage adjustable down to 0.8V; (6)20A output current capability; (7)Drives all N-Channel MOSFETs; (8)Logic controlled micropower shutdown; (9)Cycle-by-cycle current limiting; (10)Adjustable undervoltage lockout; (11)Frequency foldback overcurrent protection.

Diagrams

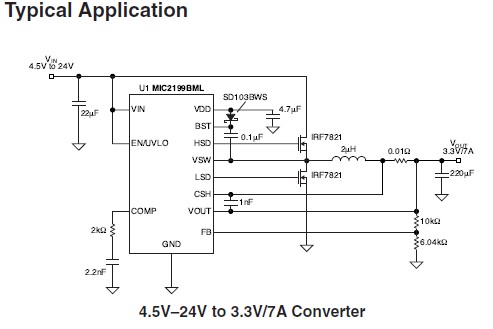

MIC2199BMLTR typical application
