Product Summary

The MPC9992FAR2 is a 3.3 V compatible, PLL based PECL clock driver.Using SiGe technology and a fully differential design ensures optimum skew and PLL jitter performance. The performance of the MPC9992FAR2 makes the device ideal for workstation, mainframe computer and telecommunication applications. The MPC9992FAR2 meets the needs of the most demanding clock applications.

Parametrics

MPC9992FAR2 absolute maximum ratings: (1)Supply Voltage,VCC: -0.3 to 3.6 V; (2)Input Voltage :-0.3 to VCC+0.3 V; (3)DC Output Voltage: -0.3 to VCC+0.3 V; (4)DC Input Current :±20 mA; (5)DC Output Current: ±50 mA; (6)Storage Temperature: -65 to 125 °C.

Features

MPC9992FAR2 features: (1)7 differential outputs, PLL based clock generator; (2)SiGe technology supports minimum output skew (max. 150 ps); (3)Supports up to two generated output clock frequencies with a maximum clock frequency up to 400 MHz; (4)Selectable crystal oscillator interface and PECL compatible clock input; (5)SYNC pulse generation; (6)PECL compatible differential clock inputs and outputs; (7)Single 3.3V (PECL) supply; (8)Ambient temperature range 0°C to +70°C; (9)Standard 32 lead LQFP package; (10)Pin and function compatible to the MPC992.

Diagrams

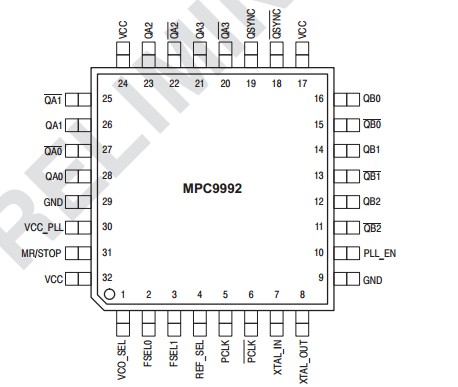

MPC9992FAR2 Pin Configuration

MPC905
MPC905
Other

Data Sheet
