Product Summary
The NJM2575 is a Low Voltage Video Amplifier contained LPF circuit, 75Ω driver to connect TV monitor directly. The mute circuit with power save function is suitable for low power design. The NJM2575 is suitable for down.
Parametrics
NJM2575 absolute maximum ratings: (1)Supply Voltage, V+: 7.0 V; (2)Power Dissipation, PD: 200 mW; (3)Operating Temperature Range, Topr: -40 to +85℃; (4)Storage Temperature Range, Tstg: -40 to +125℃.
Features
NJM2575 features: (1)Operating Voltage: 2.8 to 5.5V; (2)Input Composite Video Signal: 1.0Vpp; (3)Internal Low Pass Filter; (4)Operating Current: 7.0mA typ. at Vcc=3.0V; (5)Operating Current: Power Save Mode 60uA typ.at Vcc=3.0V; (6)Bipolar Technology; (7)Package Outline MTP6.

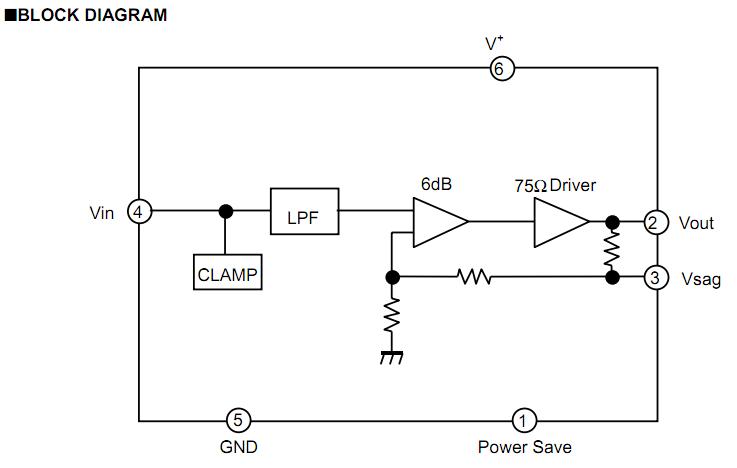

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 NJM2575 |
Other |
|
Data Sheet |
Negotiable |
|
||||||
 |
NJM2575F1-TE2 |
NJR |
Video ICs Low Voltage w/ LPF |
Data Sheet |
|
|
||||||
|
NJM2575F1-TE1 |
NJR |
Video ICs Low Voltage w/ LPF |
Data Sheet |
|
|
||||||
