Product Summary

The OPA704PA is a CMOS, Rail-to-Rail, I/O operational amplifier. The OPA704PA is optimized for applications requiring rail-to-rail input and output swing. Single, dual, and quad versions are offered in a variety of packages. The OPA704PA is optimized for gains of 5 or greater and provides 3MHz GBW and 3V/μs slew rate. The OPA704PA is fully specified and guaranteed over the supply range of ±2V to ±6V. Input swing extends 300mV beyond the rail and the output swings to within 40mV of the rail. The applications of the OPA704PA include automotive applications: Audio, Sensor Applications, Security Systems, portable equipment, active filters, transducer amplifier, test equipment, data acquisition.

Parametrics

OPA704PA absolute maximum ratings: (1)Supply Voltage, V+ to V–: 13.2V; (2)Signal Input Terminals, Voltage: (V–) –0.3V to (V+) +0.3V; Current: 10mA; (3)Output Short-Circuit: Continuous; (4)Operating Temperature: -55℃ to +125℃; (5)Storage Temperature: -65℃ to +150℃; (6)Junction Temperature: +150℃; (7)Lead Temperature (soldering, 10s): +300℃.

Features

OPA704PA features: (1)Rail-to-rail input and output; (2)Wide supply range: Single Supply: 4V to 12V; Dual Supplies: ±2 to ±6; (3)Low quiescent current: 160μA; (4)Full-scale cmrr: 90dB; (5)Low offset: 160μV; (6)High speed: 3MHz, 3V/ μs; (7)MicroSize packages: SOT23-5, MSOP-8, TSSOP-14; (8)Low input bias current: 1pA.

Diagrams

OPA704PA block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

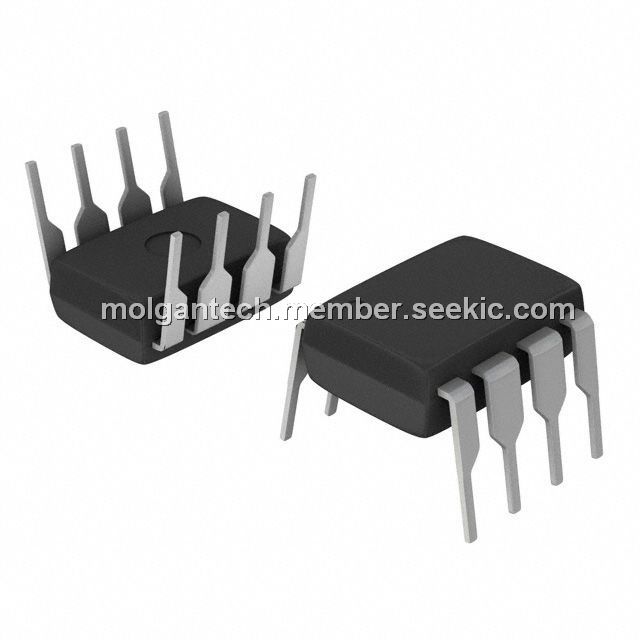

OPA704PA
