Product Summary

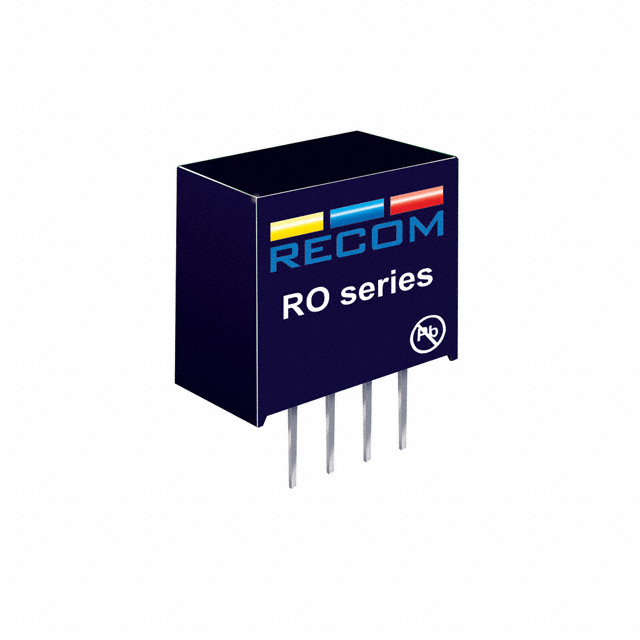

The RO-0505S is a DC/DC-Converter.

Parametrics

RO-0505S absolute maximum ratings: (1)Input Voltage Range: ±10%; (2)Output Voltage Accuracy: ±5%; (3)Line Voltage Regulation: 1.2%/1% of Vin max; (4)Load Voltage Regulation: 1.8V, 3.3V output types 20% max; (5)Output Ripple and Noise (20MHz limited): 100mVp-p max; (6)Operating Frequency: 50kHz min. / 100kHz typ. / 105kHz max; (7)Efficiency at Full Load: 70% min. / 80% typ; (8)No Load Power Consumption: 101mW min. / 126mW typ. / 171mW max; (9)Isolation Voltage (tested for 1 second): 1.000VDC min.; (10)Isolation Voltage: 2.000VDC min; (11)Isolation Capacitance 20pF min. / 75pF max; (12)Operating Temperature Range (free air convection): -40 to +85℃; (13)Storage Temperature Range: -55 to +125℃.

Features

RO-0505S features: (1)Industry Standard Pinout; (2)1kVDC & 2kVDC Isolation; (3)UL94V-0 Package Material; (4)Toroidal Magnetics; (5)Fully Encapsulated; (6)Custom Solutions Available; (7)Efficiency to 85%.

Diagrams

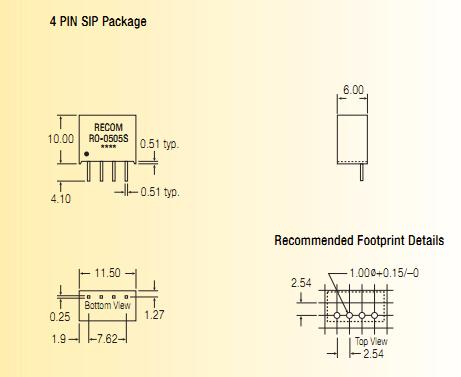

RO-0505S pin configuration
