Product Summary

The RS-485EVALBOARD1 is an evaluation board. It serves as an aid in evaluating circuit protection on RS-485 serial device ports, using two Bourns TBU High-Speed Protectors (HSP), two fast-acting GDTs and two TVS diodes to meet the required industry standards on RS-485 port interfaces. The RS-485EVALBOARD1 solution, with a low capacitance GDT, offers enhanced high-speed performance features over competing technologies, which can help the design engineer increase the surge and transient protection level on RS-485 ports and place the entire circuit protection solution into a smaller reduced PCB area. Bourns has developed an RS-485EVALBOARD1 Evaluation Board (measuring 45 mm × 21 mm × 1.2 mm) manufactured using FR4 PCB with nickel gold plating on the top and bottom sides.

Diagrams

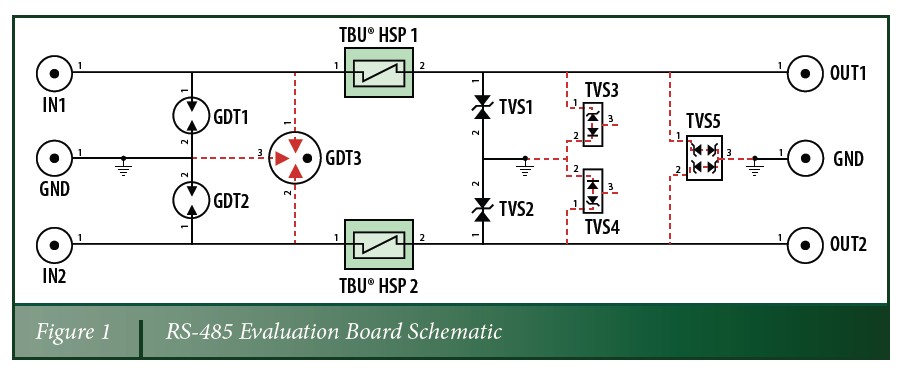

RS-485EVALBOARD1 diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
RS-485EVALBOARD1
RS-485EVALBOARD1

Bourns

Other Development Tools TVS/TBU/GDT Eval Board

Data Sheet

0-1: $12.00
1-5: $11.40
5-10: $11.10
10-50: $10.20
