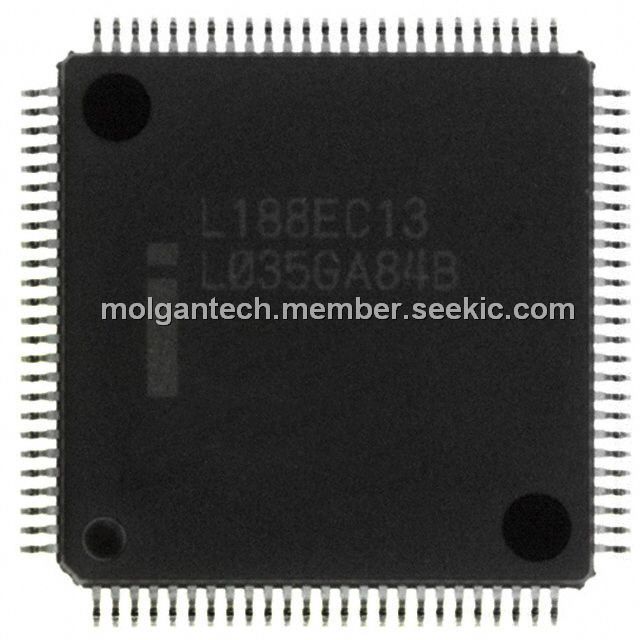

SB80L188EC13

SB80L188EC13, 16-bit, high-integration embedded processor, 100-SQFP, -0.5V to +6.5V, 15pF, 50mA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~2.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~2.00

PartNumber:: SB80L188EC13

Brand:: Intel Corporation - Intel | Pack: DIP | D/C: 97+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Olin,Ms Stiny's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-07-11

From Other Seller

Part Number:SB80L188EC13
US $1.00 - 2.00
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
ECA1HHG220

US $2.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

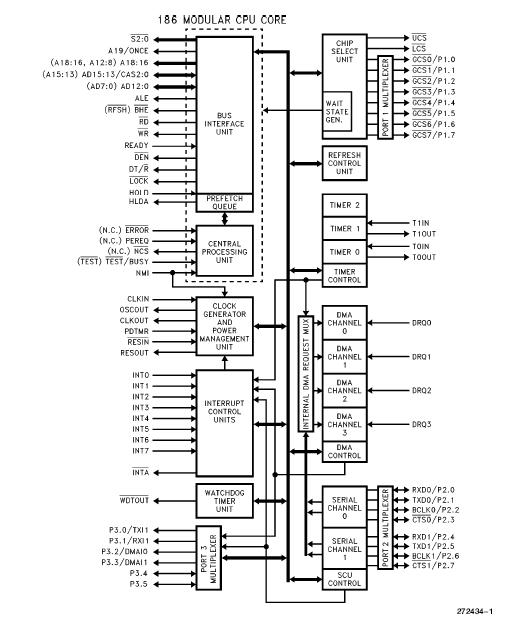

The SB80L188EC13 is a 16-bit high-integration embedded processor. The SB80L188EC13 incorporates several different VLSI devices all of which share a common CPU architecture: the 8086/8088. The SB80L188EC13 uses the latest high density CHMOS technology to integrate several of the most common system peripherals with an enhanced 8086 CPU core to create a powerful system on a single monolithic silicon die.

Parametrics

SB80L188EC13 absolute maximum ratings: (1)Storage Temperature: -65℃ to +150℃; (2)Case Temperature Under Bias: -65℃ to +100℃; (3)Supply Voltage with Respect to VSS: -0.5V to +6.5V; (4)Voltage on Other Pins with Respect to VSS: -0.5V to VCC a 0.5V.

Features

SB80L188EC13 features: (1)Low-Power, Static, Enhanced 8086 CPU Core; (2)Two Independent DMA Supported UARTs, each with an Integral Baud Rate Generator; (3)Four Independent DMA Channels; (4)22 Multiplexed I/O Port Pins; (5)Two 8259A Compatible Programmable Interrupt Controllers; (6)Three Programmable 16-Bit Timer/Counters; (7)32-Bit Watchdog Timer; (8)Ten Programmable Chip Selects with Integral Wait-State Generator; (9)Memory Refresh Control Unit; (10)Power Management Unit; (11)On-Chip Oscillator; (12)System Level Testing Support (ONCE Mode); (13)Direct Addressing Capability to 1 Mbyte Memory and 64 Kbyte I/O; (14)Low-Power Operating Modes; (15)Available in Extended Temperature Range; (16)Speed Versions Available (5V): 13MHz; (17)Speed Version Available (3V): 13MHz.
