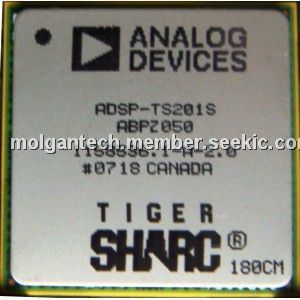

ADSP-TS201SABPZ-050

ultrahigh performance, static superscalar processor, BGA, –0.3 V to +1.4 V, Up to 600MHz, Integrated I/O

Rated 5 Rating 5 | reviews | Write a review

Price:: US $200.00~300.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $200.00~300.00

PartNumber:: ADSP-TS201SABPZ-050

Brand:: Analog Devices - ADI | Pack: BGA | D/C: 07+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Olin,Ms Stiny's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-09-16

From Other Seller

Part Number:ADSP-TS201SABPZ-050
US $200.00 - 300.00
HEF4093BT

US $0.15 - 1.20 / Piece
(0) Remove
2DI240A-055

US $70.00 - 100.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The ADSP-TS201SABPZ-050 is an ultrahigh performance, static superscalar processor optimized for large signal processing tasks and communications infrastructure. The ADSP-TS201SABPZ-050 DSP combines very wide memory widths with dual computation blocks—supporting floating-point (IEEE 32-bit and extended precision 40-bit) and fixed-point (8-, 16-, 32-, and 64-bit) processing—to set a new standard of performance for digital signal processors. The ADSP-TS201SABPZ-050 executes up to four instructions each cycle, performing 24 fixed-point (16-bit) operations or six floating-point operations.

Parametrics

ADSP-TS201SABPZ-050 absolute maximum ratings: (1)Internal (Core) Supply Voltage (VDD):–0.3 V to +1.4 V; (2)Analog (PLL) Supply Voltage (VDD_A):–0.3 V to +1.4 V; (3)External (I/O) Supply Voltage (VDD_IO):–0.3 V to +3.5 V; (4)External (DRAM) Supply Voltage (VDD_DRAM):–0.3 V to +2.1 V; (5)Input Voltage1:–0.63 V to +3.93 V; (6)Output Voltage Swing: –0.5 V to VDD_IO+0.5 V; (7)Storage Temperature Range: –65 to +150℃.

Features

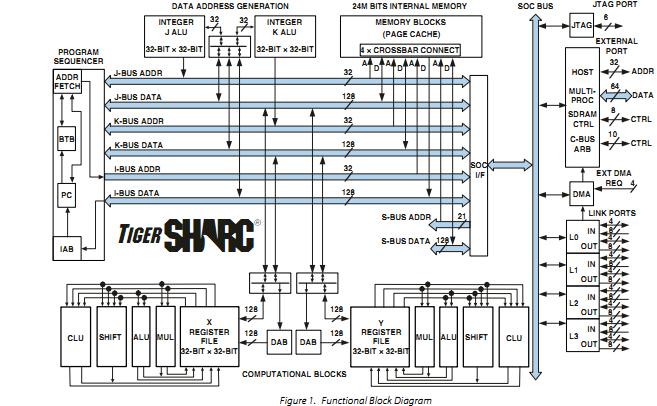

ADSP-TS201SABPZ-050 features: (1)Up to 600MHz, 1.67 ns instruction cycle rate; (2)24Mbits of internal—on-chip—DRAM memory; (3)25mm × 25mm (576-ball) thermally enhanced ball grid array package; (4)Dual-computation blocks—each containing an ALU, a multiplier, a shifter, a register file, and a communications logic unit (CLU); (5)Dual-integer ALUs, providing data addressing and pointer manipulation; (6)Integrated I/O includes 14-channel DMA controller, external port, four link ports, SDRAM controller, programmable flag pins, two timers, and timer expired pin for system integration; (7)1149.1 IEEE-compliant JTAG test access port for on-chip emulation; (8)Single-precision IEEE 32-bit and extended-precision 40-bit floating-point data formats and 8-, 16-, 32-, and 64-bit fixed-point data formats .
