Product Summary

The SDV2415R is a solid state relay. The SDV and SDI solid state relay SDV2415R is rated at 1.5 Amps RMS at ambient temperatures up to 40℃. The compact 16 pin DIP package is perfect for high density printed circuit boards. The SDV SDV2415R is voltage operated, and the SDI is current operated. Both are offered in either zero voltage or random switching (R) versions. Manufactured in Crydoms ISO 9002 Certified facility for optimum product performance and reliability.

Parametrics

SDV2415R absolute maximum ratings: (1)Load Current Range: -025 - 1.5 Arms; (2)Transient Over-Voltage: 600 Vpk; (3)Max. Surge Current, (16.6ms): 30 Apk; (4)Min. Off-State dv/dt @ Max. Rated Voltage: 500 V/μsec; (5)Max.Off-State Leakage @ Rated Voltage: 01 mArms; (6)Max. On-State Voltage Drop @ Rated Current: 1.2 Vpk; (7)Max.Turn-On Time: 1/2 cycle; (8)Max. Turn-Off TIme: 1/2 cycle; (9)Power Factor (Min.) WIth Max. Load: 0.5.

Features

SDV2415R features: (1)Compact for High Density PCB Mount; (2)DC Control; (3)SCR Output.

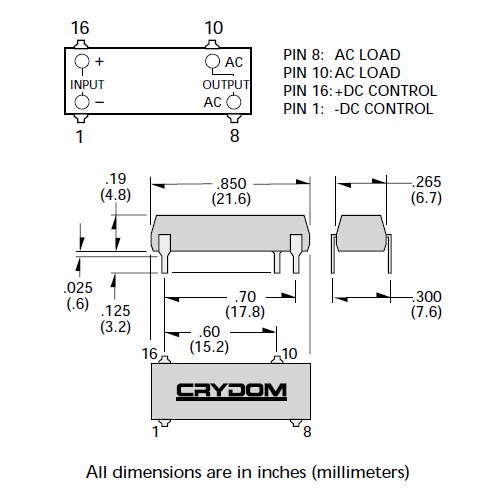

Diagrams

SDV2415R All dimensions are in inches

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
SDV2415R
SDV2415R
Crydom
Solid State Relays PCB DIP SSR, 240VA C/1.5A, 3.5-10VAC
Data Sheet
0-1: $7.75
1-5: $7.26
5-10: $6.94
10-20: $6.55
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
SDV2415
SDV2415
Crydom
Solid State Relays PCB DIP SSR, 240VAC 1.5A, 3.5-10VAC
Data Sheet
0-1: $7.25
1-10: $6.79
10-25: $6.49
25-50: $6.13
SDV2415R
SDV2415R
Crydom
Solid State Relays PCB DIP SSR, 240VA C/1.5A, 3.5-10VAC
Data Sheet
0-1: $7.75
1-5: $7.26
5-10: $6.94
10-20: $6.55
