Product Summary
The TA8227P is an audio power IC with built-in two channels developed for portable radio cassette tape recorder with power ON/OFF switch.
Parametrics
TA8227P absolute maximum ratings: (1)DC supply voltage: 20V; (2)output current: 2.5 A; (3)power dissipation: 4.0W; (4)operating temperature: -25 to 75℃; (5)storage temperature: -55 to 150℃.
Features
TA8227P features: (1)stand-by switch; (2)soft clip; (3)built-in thermal shut down protection circuit; (4)operation supply voltage range: VCC=5 to 12V; (5)low popping noise at power ON; (6)best for supply voltage 9V.

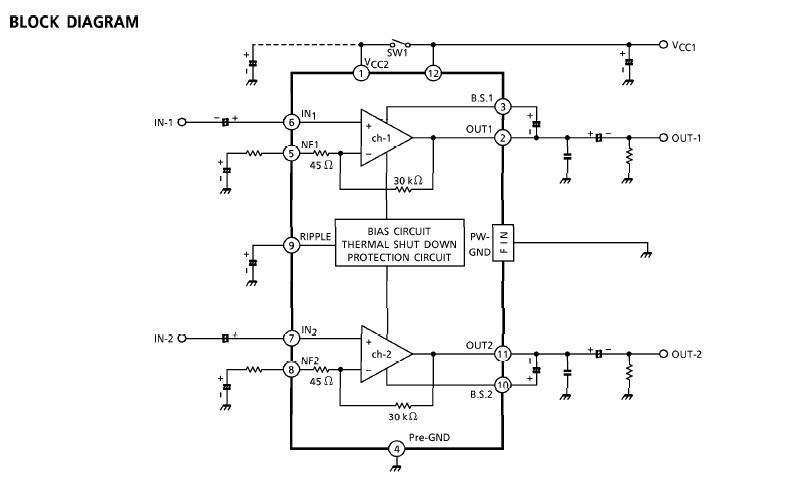

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 TA8227P |
Other |
|
Data Sheet |
Negotiable |
|
||||
