Product Summary
The SMAJ12CA-E3 is a surface mount transient voltage suppressor.
Parametrics
SMAJ12CA-E3 absolute maximum ratings: (1)Peak Pulse Power Dissipation at TA = 25℃, PPPM: 400 Minimum W; (2)Peak Forward Surge Current, IFSM: 40 A; (3)Peak Pulse Current on 10/1000μS Waveform, IPPM: See Table 1 A; (4)Steady State Power Dissipation, PM(AV): 1.0 W; (5)Operating and Storage Temperature Range, Tj, TSTG: -55 to +150℃.
Features
SMAJ12CA-E3 features: (1)Glass Passivated Die Construction; (2)400W Peak Pulse Power Dissipation; (3)5.0V –170V Standoff Voltage; (4)Uni- and Bi-Directional Versions Available; (5)Excellent Clamping Capability; (6)Fast Response Time; (7)Plastic case material has UL flammability classification rating 94V-O.

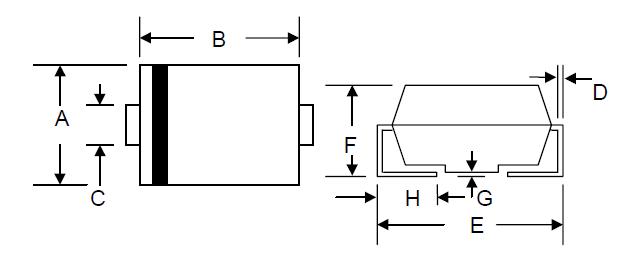

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SMAJ12CA-E3/1 |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 400W 12V 5% Bi |
Data Sheet |
Negotiable |
|
||||||||||||
|
SMAJ12CA-E3/2G |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 400W 12V 5% Bi |
Data Sheet |
Negotiable |
|
||||||||||||
|
SMAJ12CA-E3/61 |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 400W 12V 5% Bi |
Data Sheet |
|
|
||||||||||||
|
SMAJ12CA-E3/5A |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 400W 12V 5% Bi |
Data Sheet |
|
|
||||||||||||
|
SMAJ12CA-E3/51 |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 400W 12V 5% Bi |
Data Sheet |
Negotiable |
|
||||||||||||
|
SMAJ12CA-E3/63 |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 400W 12V 5% Bi |
Data Sheet |
Negotiable |
|
||||||||||||
