Product Summary

The SPUJ193700 is a Horizontal type Push Switch suitable for multiple circuits. The applications of the device include For switching modes in sound devices, including receivers and other electronic devices, PC peripheral devices, For operating in-vehicle units and mirrors and Secondary power source of TVs and plasma display panels.

Parametrics

SPUJ193700 absolute maximum ratings: (1)Rating (max.)/(min.)(Resistive load): 0.1A 30V DC/50BA 3V DC; (2)Contact resistance(Initial performance/After lifetime): 20mΩ max./40mΩ max; (3)Operating forces, 2-poles: 1.5±1N; 4-poles: 2.3±1N; (4)Operating life, Without load: 10,000 cycles; With load: 10,000 cycles (0.1A 30V DC).

Features

SPUJ193700 features: (1)5mm in lever height from the mounting surface of a PC board; (2)Standard knobs are available.

Diagrams

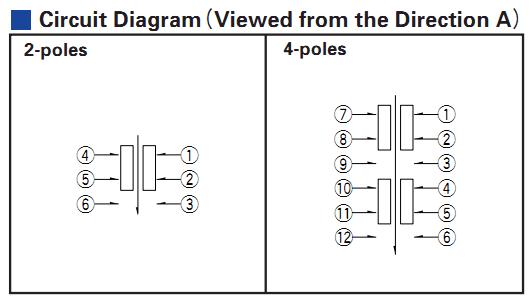

SPUJ193700 circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
SPUJ193700
SPUJ193700
ALPS
Pushbutton Switches HORZ LATCHING 4 POLE
Data Sheet
0-1: $0.81
1-25: $0.62
25-50: $0.56
50-100: $0.40
