Product Summary

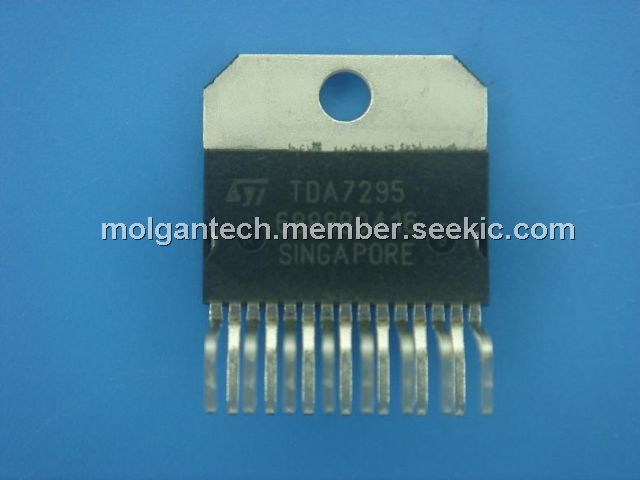

The TDA7295 is a monolithic integrated circuit in Multiwatt15 package, intended for use as audio class AB amplifier in Hi-Fi field applications (Home Stereo, self powered loudspeakers, Topclass TV). Thanks to the wide voltage range and to the high out current capability TDA7295 is able to supply the highest power into both 4W and 8W loads even in presence of poor supply regulation, with high Supply Voltage Rejection. The built in muting function with turn on delay simplifies the remote operation avoiding switching on-off noises.
Parametrics
TDA7295 absolute maximum ratings: (1)Supply Voltage, VS: ±40V; (2)Output Peak Current, IO: 6A; (3)Power Dissipation, Tcase= 70℃, Ptot: 50W; (4)Operating Ambient Temperature Range, Top: 0 to 70℃; (5)Storage and Junction Temperature, Tstg, Tj: 150℃.
Features
TDA7295 features: (1)very high operating voltage range(±40v); (2)dmos power stage; (3)high output power (up to 80w music power); (4)muting/stand-by functions; (5)no switch on/off noise; (6)no boucherot cells; (7)very low distortion; (8)very low noise; (9)short circuit protection; (10)thermal shutdown.
Diagrams
