Product Summary
The TL082MJG is a JFET-input operational amplifier, designed to offer a wider selection than any previously developed operational amplifier family. The TL082MJG incorporates well-matched, high-voltage JFET and bipolar transistor in a monolithic integrated circuit. The device features high slew rates, low input bias and offset currents, and low offset-voltage temperature coefficient.
Parametrics
TL082MJG absolute maximum ratings: (1)Supply voltage, VCC+: 18V; (2)Supply voltage VCC－: －18V; (3)Differential input voltage, VID: ±30V; (4)Input voltage, VI: ±15V; (5)Duration of output short circuit: unlimited; (6)Continuous total power dissipation, see dissipation rating table; (7)Operating free-air temperature range,TA: －40 to 85℃; (8)Package thermal impedance, θJA, D package (8-pin): 97℃/W; D package (14-pin): 86℃/W; N package (14-pin): 76℃/W; P package (8-pin): 85℃/W; PS package (8-pin): 95℃/W; PW package (14-pin): 11395℃/W; (9)Operating virtual junction temperature: 150℃; (10)Storage temperature range, Tstg: －65 to 150℃.
Features
TL082MJG features: (1)Low power consumption; (2)Wide common-mode and differential voltage ranges; (3)Low input bias and offset currents; (4)Output short-circuit protection; (5)Low total harmonic distortion to 0.003% Typ; (6)High input impedance to JFET-input stage; (7)Latch-up-free operation; (8)High slew rate to 13 V/μs Typ; (9)Common-mode input voltage range includes VCC+.

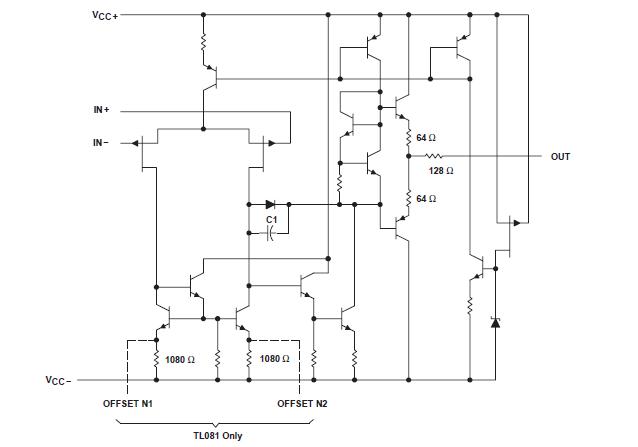

Diagrams
 |
