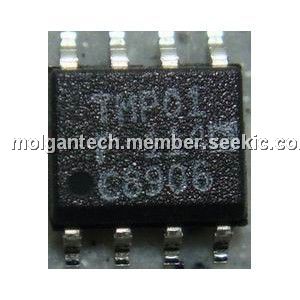

Product Summary

The TMP01FS is a temperature sensor which generates a voltage output proportional to absolute temperature and a control signal from one of two outputs when the TMP01FS is either above or below a specific temperature range. The applications of the TMP01FS are Over/Under Temperature Sensor and Alarm, Board Level Temperature Sensing, Temperature Controllers, Electronic Thermostats, Thermal Protection, HVAC Systems, Industrial Process Control, Remote Sensors.

Parametrics

TMP01FS absolute maximum ratings: (1)Maximum Supply Voltage:–0.3 V to +15 V; (2)Maximum Input Voltage(SETHIGH, SETLOW):–0.3 V to [(V+) +0.3 V]; (3)Maximum Output Current (VREF, VPTAT):2 mA; (4)Maximum Output Current (Open Collector Outputs):50 mA; (5)Maximum Output Voltage (Open Collector Outputs):15 V; (6)Operating Temperature Range:–55℃ to +150℃; (7)Dice Junction Temperature:+150℃; (8)Storage Temperature Range:– 65℃ to +150℃; (9)Lead Temperature (Soldering, 60 sec):+300℃.

Features

TMP01FS features: (1)–55℃ to +125℃ Operation; (2)61.0℃ Accuracy Over Temperature (typ); (3)Temperature-Proportional Voltage Output; (4)User Programmable Temperature Trip Points; (5)User Programmable Hysteresis; (6)20 mA Open Collector Trip Point Outputs; (7)TTL/CMOS Compatible; (8)Single-Supply Operation (4.5 V to 13.2 V); (9)Low Cost 8-Pin DIP and SO Packages.

Diagrams

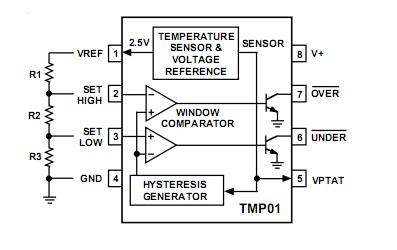

TMP01FS block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TMP01FS
TMP01FS

IC SENSOR TEMP/CONTROLLER 8SOIC
Data Sheet
0-98: $3.12
TMP01FS-REEL
TMP01FS-REEL

IC SENSOR TEMP/CONTROLLER 8SOIC
Data Sheet
0-2500: $2.03
TMP01FS-REEL7
TMP01FS-REEL7

IC SENSOR TEMP/CONTROLLER 8SOIC
Data Sheet
0-1000: $2.06
TMP01FSZ
TMP01FSZ

IC SENSOR TEMP/CONTROLLER 8SOIC
Data Sheet
0-1: $3.49
1-10: $3.14
10-100: $2.58
100-250: $2.37
250-500: $2.16
500-1000: $1.88
1000-2500: $1.86
TMP01FSZ-REEL
TMP01FSZ-REEL

IC SENSOR TEMP/CONTROLLER 8SOIC
Data Sheet
0-2500: $1.86
TMP01FSZ-REEL7
TMP01FSZ-REEL7

IC SENSOR TEMP/CONTROLLER 8SOIC
Data Sheet
0-1000: $1.88
