Product Summary

The TMP87PH48DF is a onetime PROM microcontroller with low-power 128 Kbits (16 Kbytes) electrically programmable read only memory for the TMP87PH48DF system evaluation.

Parametrics

TMP87PH48DF absolute maximum ratings: (1)Supply voltage,VDD:-0.3 to 6.5V; (2)Inpot voltage: -0.3 to VDD + 0.3V; (3)Output voltage:-0.3 to VDD + 0.3V; (4)Output current (Total):120mA; (5)Power dissipation:350W; (6)Soldering temperature (Time):260°C; (7)Storage temperature:-55 to 125°C; (8)Operating Temperature:-40 to 85°C.

Diagrams

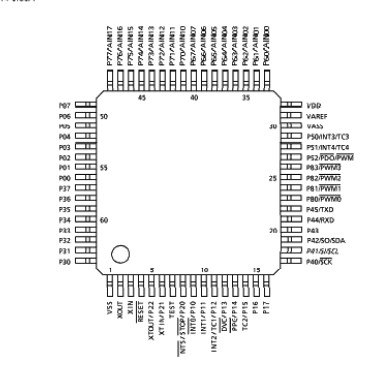

TMP87PH48DF Pin Configuration
