TSL1401CS-LF

Linear Sensor Array, 128 × 1, 8 MHz, 5 V, 400 DPI, High Linearity, Low Image Lag, Rail-to-Rail Output Swing

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.00~5.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $3.00~5.00

PartNumber:: TSL1401CS-LF

Brand:: TEXAS ADVANCED OPTOELECTRONIC SOLUTIONS - TAOS | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Olin,Ms Stiny's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-12

From Other Seller

Part Number:TSL1401CS-LF
US $3.00 - 5.00
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

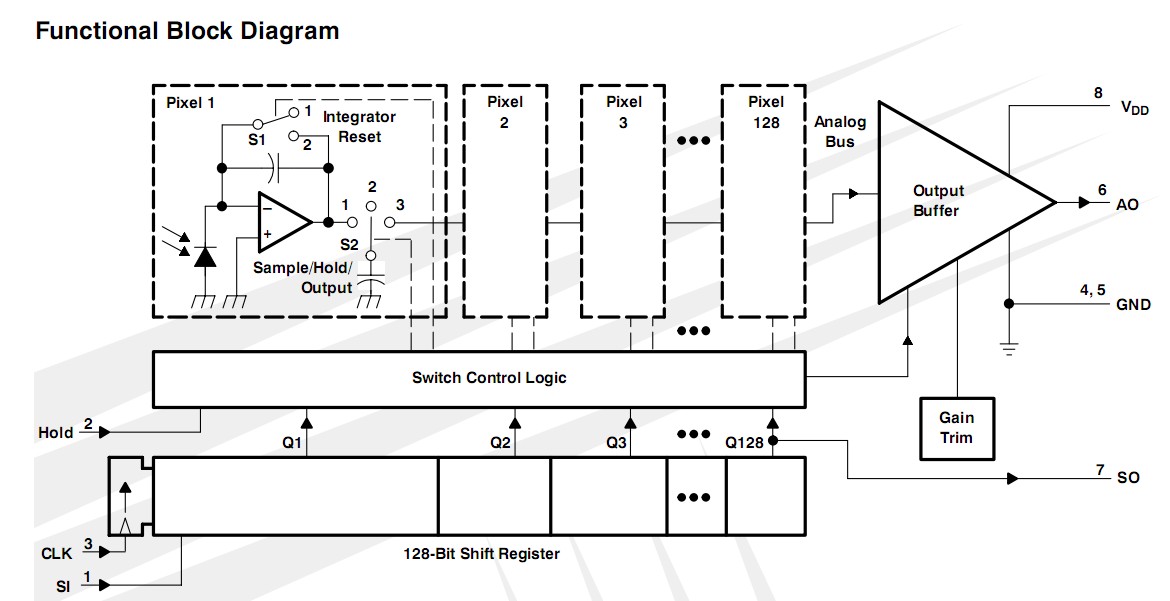

The TSL1401CS-LF linear sensor array consists of a 128 × 1 array of photodiodes, associated charge amplifier circuitry, and a pixel data-hold function that provides simultaneous-integration start and stop times for all pixels. The pixels measure 63.5 μm (H) by 55.5 μm (W) with 63.5-μm center-to-center spacing and 8-μm spacing between pixels. Operation is simplified by internal control logic that requires only a serial-input (SI) signal and a clock.

Parametrics

TSL1401CS-LF absolute maximum ratings: (1)Supply voltage range, VDD: -0.3 V to 6 V; (2)Input voltage range, VI: -0.3 V to VDD + 0.3V; (3)Input clamp current, IIK (VI < 0) or (VI > VDD): -20 mA to 20 mA ; (4)Output clamp current, IOK (VO < 0 or VO > VDD): -25 mA to 25 mA; (5)Voltage range applied to any output in the high impedance or power-off state, VO: -0.3 V to VDD + 0.3 V; (6)Continuous output current, IO (VO = 0 to VDD): -25 mA to 25 mA; (7)Continuous current through VDD or GND: -40 mA to 40 mA; (8)Analog output current range, IO: -25 mA to 25 mA; (9)Maximum light exposure at 638 nm: 5 mJ/cm2; (10)Operating free-air temperature range, TA: -40 to 100℃; (11)Storage temperature range, Tstg: -40 to 100℃; (12)Solder reflow temperature, case exposed for 10 seconds: 260℃.

Features

TSL1401CS-LF features: (1)128 × 1 Sensor-Element Organization; (2)400 Dots-Per-Inch (DPI) Sensor Pitch; (3)High Linearity and Uniformity; (4)Wide Dynamic Range: 4000:1 (72 dB); (5)Output Referenced to Ground; (6)Low Image Lag: 0.5% Typ; (7)Operation to 8 MHz; (8)Single 3-V to 5-V Supply; (9)Rail-to-Rail Output Swing (AO); (10)No External Load Resistor Required; (11)Available in a Solder-Bump Linear Array Package; (12)Lead (Pb) Free and RoHS Compliant.
