Product Summary
The Z1601720ACS1868 is a general-purpose PCMCIA adapter chip used on the card side of the interface. For increased versatility. The chip is easily configured to allow access to all types of memory or I/O-mapping peripherals, such as Ethernet controllers,Universal Asynchronous Receiver/Transmitters (UART), modems,rotating disk memory, and so on. The Z1601720ACS1868 can be used in a standalone configuration without the use of a local processor when all necessary data for Attribute Memory, Card Configuration Registers (CCR), Memory/I/O maps, and so on, are being provided by a local serial EEPROM.
Parametrics
Z1601720ACS1868 absolute maximum ratings: (1)Supply Voltage, VDD:–0.5 to 7.0V; (2)Input Voltage, VI: –0.5 to VDD + 0.5V; (3)Output Voltage,VO:–0.5 to + 0.5 VDD V; (4)Storage Temperature ,TSTG : –40 to +125°C; (5)Temperature Under Bias, TBIAS:–25 to +85°C.
Features
Z1601720ACS1868 features: (1)PCMCIA Configuration Registers; (2)Sequencer for programming attribute memory using EEPROM content, MASTER mode; (3)Serial Peripheral Interface (SPI) circuitry allows control through the local microprocessor, SLAVE mode; (4)PCMCIA to I/O peripheral; (5)PCMCIA to ATA/IDE translation; (6)ATA/IDE to ATA/IDE mapping, PASSHROUGH mode; (7)Operates from a 3.0V to 5.5V power supply; (8)Conforms to PCMCIA standards; (9)Low power dissipation; (10)On-chip generation of IOIS16 in I/O mode.

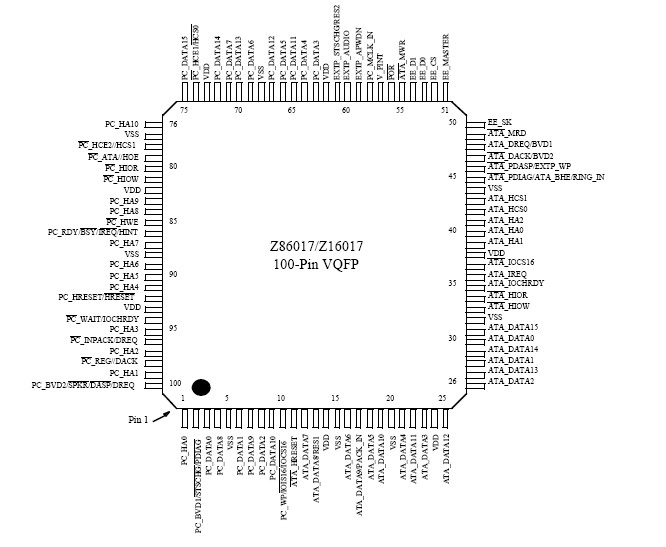

Diagrams
 |
