Product Summary

The 026TB32R251B1A1 is a Rotary Potentiometer.

Parametrics

026TB32R251B1A1 absolute maximum ratings: (1)Resistance (Ohms) 250; (2)Power (Watts) 5W; (3)Tolerance ±20%; (4)Number of Turns Single; (5)Rotation 300°; (6)Adjustment Type Side Adjustment; (7)Resistive Material Wirewound; (8)Termination Style Solder Lug; (9)Actuator Length 1.000" (25.40mm); (10)Actuator Type Round Shaft; (11)Actuator Diameter 0.250" (6.35mm).

Features

026TB32R251B1A1 features: (1)Dust-proof construction; (2)5 watt power rating; (3)Superior resistance stability in temperature and environment change; (4)Tandem constructions available; (5)Bushing or twist tab mounting; (6)Available with pull-push and rotary power switches; (7)RoHS compliant ; (8)Precision linearity.

Diagrams

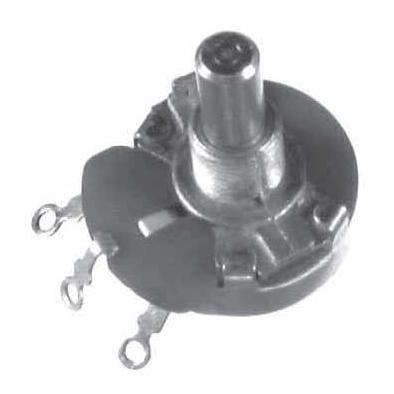

026TB32R251B1A1 diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
026TB32R251B1A1
026TB32R251B1A1
CTS Electronic Components
Potentiometers 250ohms 20% Round Linear Res.
Data Sheet
0-1: $2.17
1-10: $2.02
10-50: $1.66
50-100: $1.51
